1101721001概述

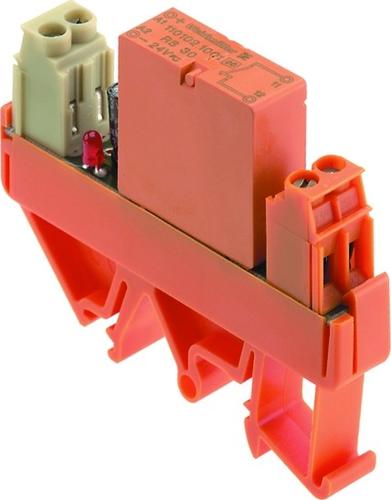

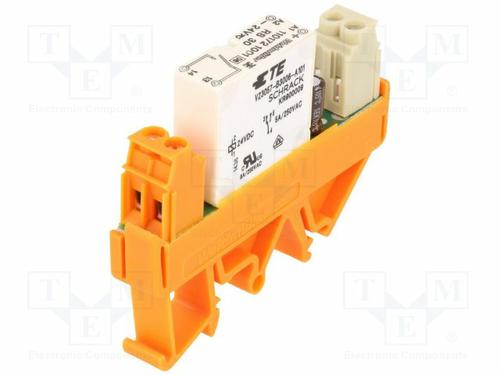

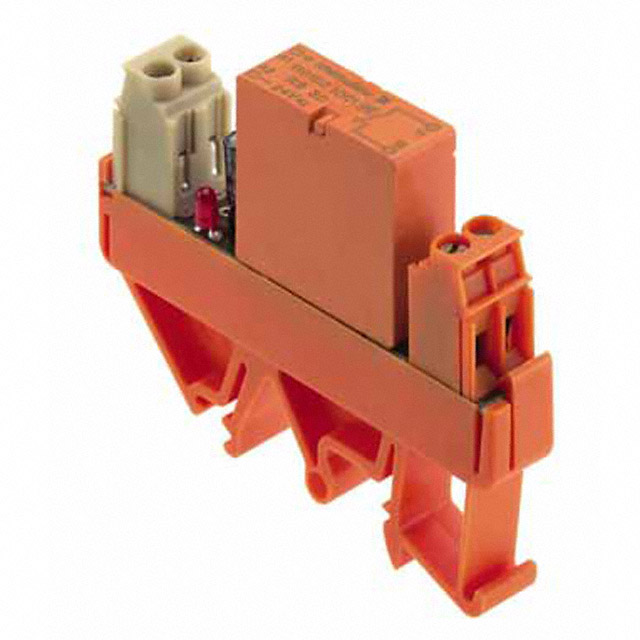

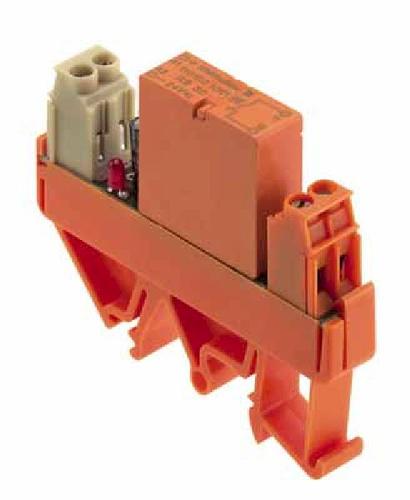

Electromechanical Relay 24VDC 24VAC 8A SPST-NO 56mm 11.2mm 70mm DIN Rail Coupling Relay

Electromechanical Relay 24VDC 24VAC 8A SPST-NO56x11.2x70mm DIN Rail Coupling Relay

得捷:
RELAY GEN PURPOSE SPST 6A 24V

TME:
Relay: interface; SPST-NO; Ucoil:24VDC; Ucoil:24VAC; 6A

Verical:
Electromechanical Relay 24VDC 24VAC 8A SPST-NO 56mm 11.2mm 70mm DIN Rail Coupling Relay

Newark:
# WEIDMULLER 1101721001 RS 30 24VAC 10C

MASTER:
Electromechanical Relay 24VDC 24VAC 8A SPST-NO 56mm 11.2mm 70mm DIN Rail Coupling Relay

Online Components:
Electromechanical Relay 24VDC 24VAC 8A SPST-NO56x11.2x70mm DIN Rail Coupling Relay

Electro Sonic:
Electromechanical Relay 24VDC 24VAC 8A SPST-NO 56mm 11.2mm 70mm DIN Rail Coupling Relay

1101721001中文资料参数规格

技术参数

额定电压AC 250 V

触点额定电流 8 A

线圈电压 24VAC, 24VDC

线圈电流 9 mA

线圈电压AC 24 V

额定电流Max 8 A

线圈电压DC 24 V

线圈功率 450 mW

额定功率Max 2 KVA

封装参数

安装方式 Screw Terminals, DIN Rail

外形尺寸

高度 70 mm

物理参数

触点材质 Silver Nickel, Gold

工作温度 -25℃ ~ 40℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1101721001

型号： 1101721001

描述：Electromechanical Relay 24VDC 24VAC 8A SPST-NO 56mm 11.2mm 70mm DIN Rail Coupling Relay
