1503 06

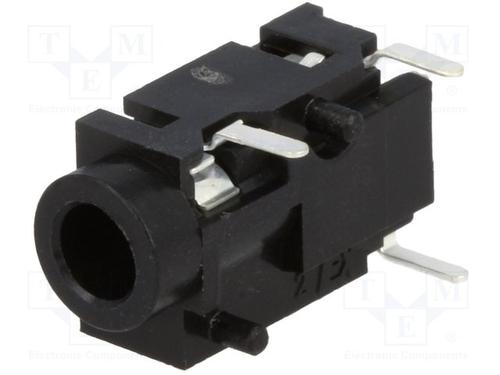

LUMBERG  1503 06  手机音频连接器, 插座, 3.5 mm, 2 触点, 电路板安装, 金属主体, 镀银触芯

The from is a 3.5mm, 2pole mono jack socket connector. The angular version jack chassis socket are according to JIS C 6560 JC35J2B standard with break contact for printed circuit boards.

.

Rated current of 1A

.

Rated voltage of 34VAC/VDC

.

Insulating body material is polyamide, UL94-HB rated

.

CuZn, Cu alloy contact with silver plated

.

Mating with 1532 03, 1532 04. 1532 06, KLS 2, KLS 22, WKLS 2 jack plugs

.

Temperature range from -20°C to 70°C
