159-2801-050概述

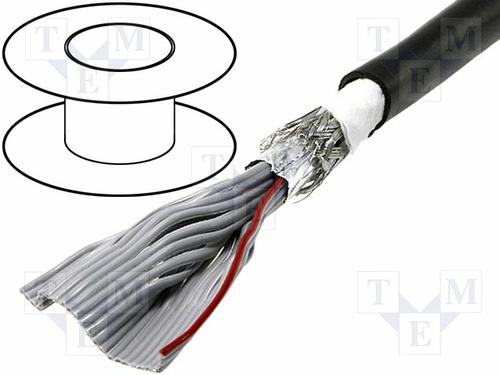

AMPHENOL SPECTRA-STRIP  159-2801-050  圆至扁电缆

The is a 50-core shielded round N-flat Jacketed Cable with tinned copper conductor and a PVC insulator. This ribbon screened cable comes with black PVC jacket, aluminium/polyester foil and a tinned copper braid shield 85% minimum coverage. It combines the handling and shielding features of round cable and the mass termination capabilities of flat cable into a single construction. It is designed for routing in tight spaces where a round shape is more practical and where a foil braid shield is necessary to help meet FCC requirements for EMI/RFI suppression. The inner cable is extruded Spectra-Zip with alternating sections that are flat and slit. Each flat section is 3/4-inch in length with conductors on controlled spacing of 0.05 and 0.003-inch making it ideally suited for IDC mass termination methods. The flat section keep the conductor aligned for conductor positioning while the slit zip feature provides easy breakout of individual conductors.

.
High flexibility
.
75R Impedance
.
24pf/ft at 1MHz 78.7pf/m Capacitance
.
1.60ns/ft 5.25ns/m Propagation delay
159-2801-050中文资料参数规格
技术参数

线规 28 AWG

额定电压DC 300 V

额定电压AC 300 V

额定电流 1.3 A

绝缘电阻 10 GΩ

电容 78.7 pF

电感 490 nH

屏蔽 Yes

芯数 50

额定电流Max 1.3 A

工作温度Max 105 ℃

工作温度Min -20 ℃

额定电压Max 300 V

额定电压 300 V

封装参数

封装 100

引脚间距 1.27 mm

外形尺寸

长度 100 ft

封装 100

引脚间距 1.27 mm

物理参数

颜色 Black

绝缘材质 PVC

工作温度 -20℃ ~ 105℃

导体材质 Tinned Copper

外壳材质 PVC

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Computers & Computer Peripherals

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

HTS代码 8544110050
