1551572-5

TE CONNECTIVITY  1551572-5  连接器配件, 1.8mm高, Spring Finger, PCB Shielding and Grounding Applications

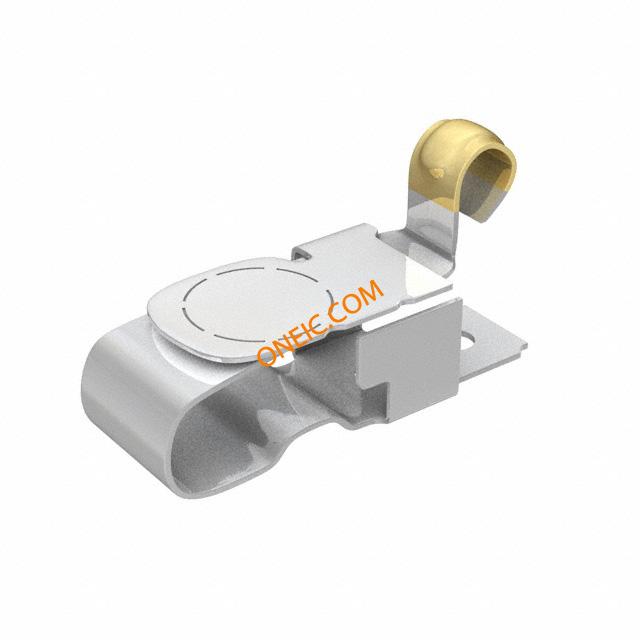

The is a loose piece scalable Spring Finger for use with PCB shielding and grounding applications. This finger is also known as shield fingers, grounding springs or universal ground contacts and are used in almost every small printed circuit board application. It provides an electrical connection and grounding from EMI noise and static between a PCB and other electronic components, such as a secondary PCB, shield cam, antenna or speaker. Accommodates soldering and pick-and-place using standard equipment and it provides easy and inexpensive method for connecting multiple PCBs.

.

Spring finger is a 1-contact, surface mountable, internal connector

.

Available in effective heights of 0.3 to 6.5mm

.

Requires limited space on a PCB

.

Provides highly reliable connection

.

Allows for versatility in design for PCB

.

Can be designed in at last minute

.

No expensive specialized equipment needed

.

Gold-plated contacts
