LUMBERG 1502 03 手机音频连接器, 插座, 3.5 mm, 2 触点, 面板安装, 金属主体, 镀银触芯

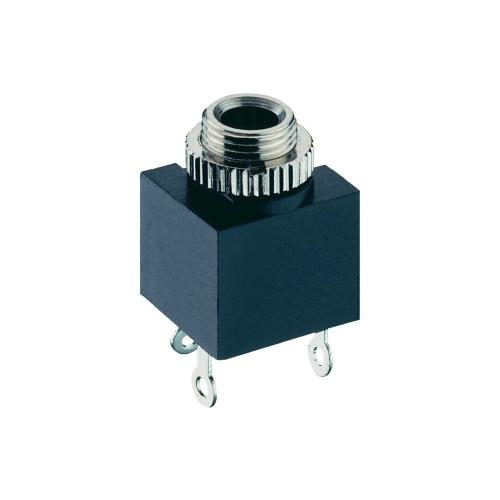

The from is a 3.5mm, 2pole mono jack socket connector. The jack chassis socket are according to JIS C 6560 standard with break contact, solder terminals for printed circuit boards and back side mounting.
- .
- Rated current of 1A
- .
- Rated voltage of 34VAC/VDC
- .
- Insulating body material is polycarbonate GF
- .
- Copper zinc, nickel/silver plated contact
- .
- Mating with 1532 03, 1532 04, 1532 06 jack plugs
- .
- Temperature range from -20°C to 70°C
触点数 2
极性 Male
触点电镀 Silver
额定电压AC 34.0 V
额定电流 1.00 A
绝缘电阻 100 MΩ
接触电阻 20.0 mΩ
拔插次数 5000
额定电流Max 1 A
工作温度Max 70 ℃
工作温度Min -20 ℃
接触电阻Max 20 mΩ
安装方式 Through Hole
高度 10.5 mm
颜色 Black
触点材质 Brass
包装方式 Bulk
制造应用 Industrial, Audio, 音频, 工业
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1502 03 Lumberg 隆堡电子 | 当前型号 | 当前型号 |
MJ-355 PRO Signal | 功能相似 | 1502 03和MJ-355的区别 |
