19160-0012概述

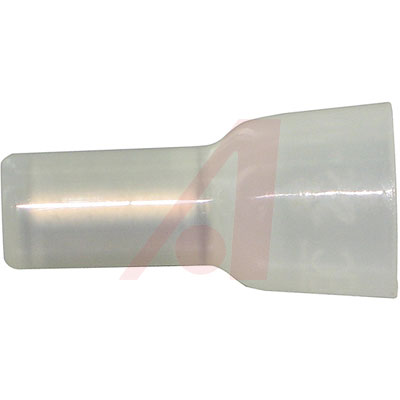

MOLEX  19160-0012  连接端子, 闭合接头

Splices

offers splices for nearly every type of wiring need, from simple wire splices to splices designed for heavy-vibration applications and in harsh environments where sealed connections are required. Whether it is repairing wiring in the field, adding a wire to an existing harness or attaching two or more wires to the same point, Molex has a splice that is perfect for the job. Splices are offered un-insulated or insulated for crimp termination. Whether using solid or stranded wire, several options for splicing are offered by Molex.

19160-0012中文资料参数规格
技术参数

触点数 1

极性 Female

线规 22.0 AWG

触点电镀 Tin

额定电压DC 300 V

无卤素状态 Low Halogen

方向 Straight

易燃性等级 UL 94 V-2

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压Max 300 V

外形尺寸

长度 15.5 mm

宽度 8.1 mm

直径 7.87 mm

物理参数

颜色 Natural

触点材质 Copper

绝缘材质 Nylon

工作温度 -55℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

REACH SVHC标准 No SVHC

数据手册

在线购买19160-0012
型号: 19160-0012
制造商: Molex 莫仕
描述:MOLEX  19160-0012  连接端子, 闭合接头
替代型号19160-0012
型号/品牌 代替类型 替代型号对比

19160-0012

Molex 莫仕

当前型号

当前型号

191600070

莫仕

完全替代

19160-0012和191600070的区别

191600012

莫仕

完全替代

19160-0012和191600012的区别

MC29490

Multicomp

类似代替

19160-0012和MC29490的区别
