1-66361-2

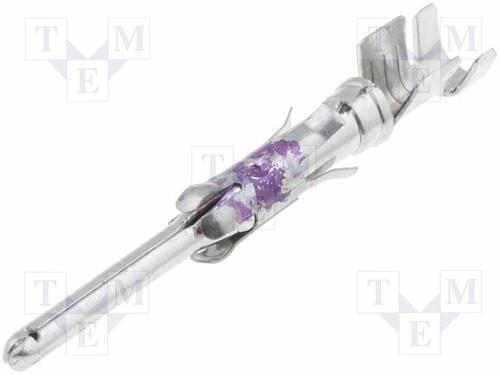

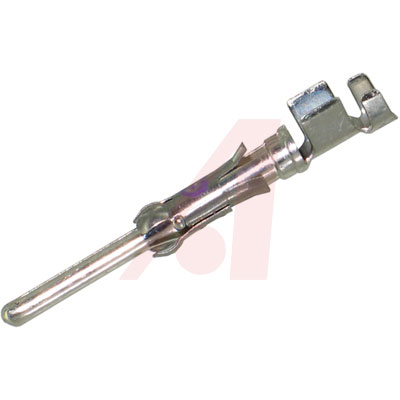

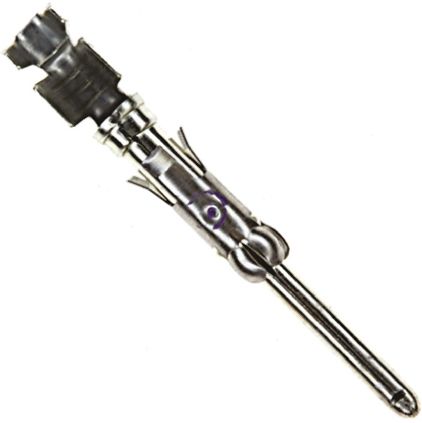

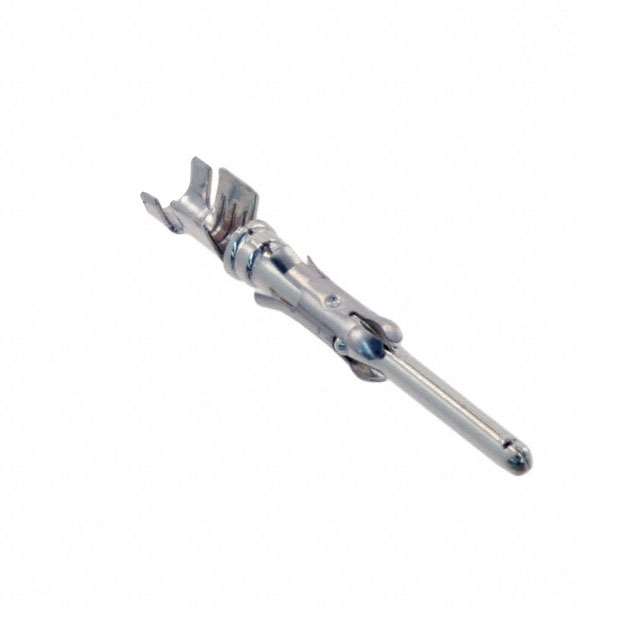

TE CONNECTIVITY  1-66361-2  触芯, CPC系列, 公, 压接, 18 AWG, 镀锡触芯, Type III+ Series Connectors

压接触点 III+ 型

有不锈钢弹簧的镀锡黄铜触点

绝缘支持

另提供合适的支持工具

额定电流 | 7.5A

---|---

引脚直径 | 1.6mm

选择指南

---

AMP 参考 | 类型 | 截面 mm² | awg 量规 | 绝缘 Ø mm | 颜色代码

163086-1 | 引脚 | 0.3-0.6 | 22-20 | 1.1-1.8 | 黄色

163082-1 | 引脚 | 0.8-1.34 | 18-16 | 2-2.5 | 蓝色

163084-1 | 插座 | 0.8-1.34 | 18-16 | 2-2.5 | 蓝色

欧时:
### 压接触点 III+ 型有不锈钢弹簧的镀锡黄铜触点 绝缘支持 另提供合适的支持工具 选择指南 --- AMP 参考 | 类型 | 截面 mm² | awg 量规 | 绝缘 Ø mm | 颜色代码 163086-1 | 引脚 | 0.3-0.6 | 22-20 | 1.1-1.8 | 黄色 163082-1 | 引脚 | 0.8-1.34 | 18-16 | 2-2.5 | 蓝色 163084-1 | 插座 | 0.8-1.34 | 18-16 | 2-2.5 | 蓝色 额定电流 | 7.5A ---|--- 引脚直径 | 1.6mm ### TE Connectivity Metrimate 系列5mm 节距连接器 适合面板或自由安装 比 Mate-N-Lok 系列引脚更高

得捷:
CONN PIN 14-18AWG TIN CRIMP

立创商城:
端子

贸泽:
标准环形接头 TIN PIN 18-14 AWG

e络盟:
触芯, CPC系列, 公, 压接, 18 AWG, 镀锡触芯, III+型系列连接器

艾睿:
This 1-66361-2 connector contact from TE Connectivity is designed to perform within the rated environmental conditions to provide a solid connection. It has a straight body orientation. This has a Connector Circular connector. Its wire is 14-18 AWG. This product is 27.48 mm long and 3.68 mm. It uses the crimp termination method.

Allied Electronics:
Contact; Pin; 16; Brass; Signal; BrightTin-Lead; Commercial; Crimp; 13 A; AMP

安富利:
Contact PIN Crimp ST Cable Mount Loose Piece

Chip1Stop:
Contact PIN Crimp ST Cable Mount Loose Piece

TME:
Contact; male; 0.8÷2mm2; 18÷14AWG; Type III+; tinned; crimped; bulk

Verical:
Contact PIN 16 Size Crimp ST Cable Mount 14-18AWG Carton/Loose

Newark:
# AMP - TE CONNECTIVITY  1-66361-2  Contact, Multimate, Type III+ Series, Pin, Crimp, 14 AWG, Tin Plated Contacts

MASTER:
PIN ASSEMBLY, LOOSE PIECE, TYPE III+

Powell:
Multimate Contacts

Online Components:
III+ PIN,18-14,TIN,LP

ICbanQ:
Standard Circular Connectors TIN PIN 18-14 AWG

GOPHER:
Socket Contact AWG 18 - 14 TIN/BRASS LOOSE PIECE

Electro Sonic:
III+ PIN,18-14,TIN,LP
