15250162601000

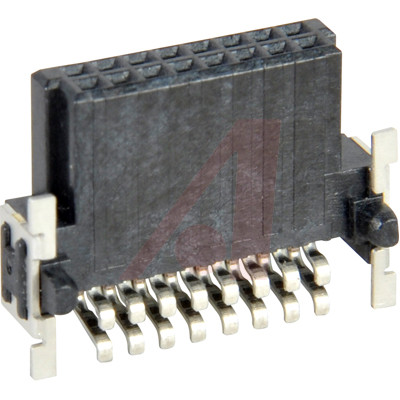

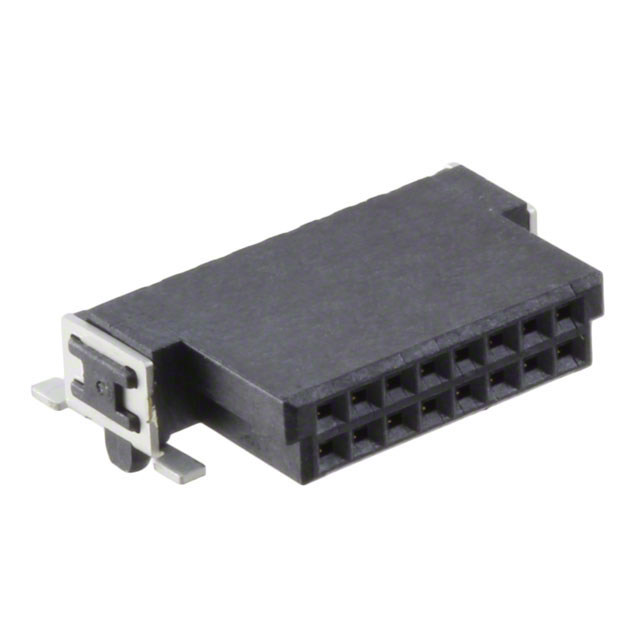

16 位置 双排 1.27 mm 间距 Har-Flex 角度 母头 连接器

har-flex® is a general-purpose PCB connector series based on a 1.27 mm grid with SMT termination technology.

With its straight, angled and cable variants, har-flex® provides connectivity solutions for many different board-to-board and cable-to-board applications. The different stacking heights of the mezzanine connectors and the flexible IDC connector cable lengths offer a high degree of freedom to the system design.

A broad choice of configurations between 6 and 100 contacts in even numbered positions is available.

HARTING har-flex® Connectors provide 100 percent coplanarity testing and standard fitting with pick and place pads that guarantee a simple, fully automatic and assembly of the PCBs.

Applications

* Controllers

* Drives

* Sensors

Features

* Robust design solder hold-downs

* Wide range of pin counts available all even numbers from 6 - 100

* 4 stacking heights from 8mm to 13.8mm

* SMT termination for reflow solder process

* Pick & Place pads for automatic assembly

* Tape & Reel packaging for pick-and-place machines

* Secure solder connection coplanarity of termination pins

* Flexible tolerances of PCB distance due to a wiping length of 1.5mm

* MSL 1 The har-flex® angled connectors are made for right-angled motherboard-to-daughtercard applications and so called extender card applications two angled connectors in one plane. The angled male connectors can be even mated with the cable connectors for flatband cables.
