1-534998-3

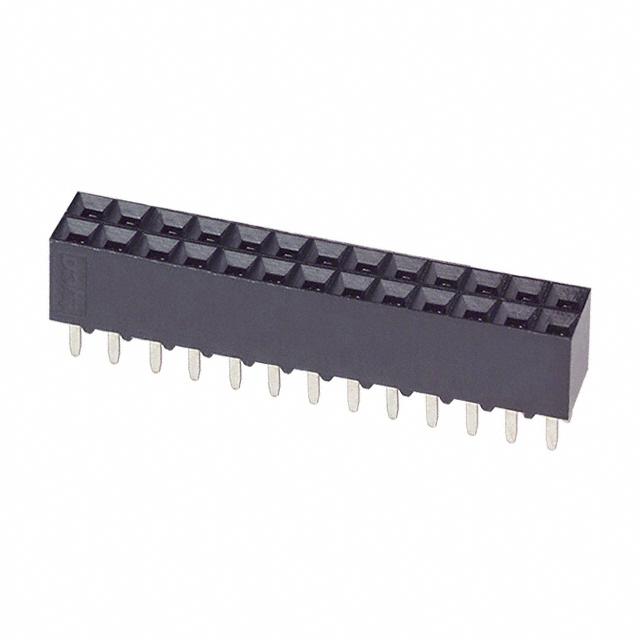

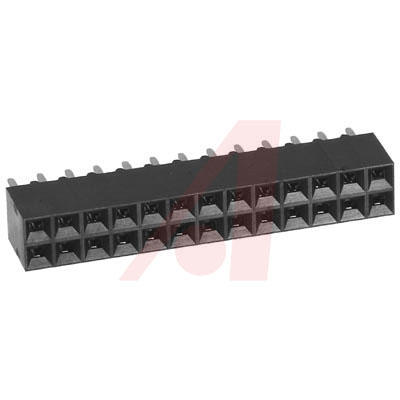

Connector Socket Strip Receptacle 26Position 2.54mm Solder Straight Through Hole Gang Of Tubes

Post Shunt, Open Top Style, Glass Filled Polyester Housing Material, Black Color

* AMP brand

* Dual number of rows

* Phosphor bronze housing material

Glass filled polyester housing material. 12 Milliohms contact resistance.

得捷:
CONN RCPT 26POS 0.1 GOLD PCB

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s socket strip 1-534998-3 header connector helps protect your equipment from accidental shortages. This RCP connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. This product is 33.02 mm long, 6.73 mm tall and 5.03 mm deep. 1-534998-3 is housed in black polychlorinated terphenyl.

Allied Electronics:
Receptacle Assembly; Glass Filled Polyester; Phosphor Bronze; Vertical; 26; 2 A

Jameco:
Connector Socket Strip Receptacle 26 Position 2.54mm Solder Straight Through Hole Gang Of Tubes

Verical:
Conn Socket Strip F 26 POS 2.54mm Solder ST Top Entry Thru-Hole Automotive Tube

MASTER:
RECEPTACLE ASSEMBLY, MOD IV, DOUBLE ROW, DUAL ENTRY, .100X.100CL, VERTICAL MOUNT, AMPMODU

Powell:
.100 inch AMPMODU Receptacles

Online Components:
26 MODIV VRT DR CE 100/125

Win Source:
26 Position Receptacle Connector 0.100" 2.54mm Through Hole Gold

Electro Sonic:
26 MODIV VRT DR CE 100/125
