AMPMODU Mod IV 系列 20 位置 通孔 垂直 0.100 英寸 插座

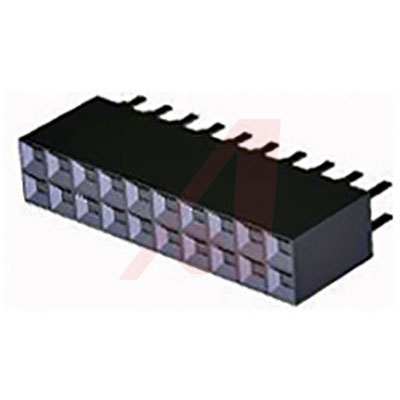

** AMPMODU Mod IV Low Profile Double Row Receptacle Assemblies**
AMPMODU Mod IV low profile receptacle assemblies with a 2.54 x 2.54mm centerline. These AMPMODU Mod IV low profile receptacle assemblies are double row with closed top entry and are end and side stackable. The housings of these receptacle assemblies are made from black 94V-0 glass filled thermoplastic.
触点数 20
极性 Female
触点电镀 Gold, Tin Lead
额定电流 2.00 A
绝缘电阻 5000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 20
接触电阻 12.0 mΩ
额定电流Max 2A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 333 VAC
接触电阻Max 12 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 25.4 mm
宽度 5.03 mm
高度 6.73 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-534998-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
6-534998-0 泰科 | 功能相似 | 1-534998-0和6-534998-0的区别 |
