1-534237-2

集管和线壳 14P SIP RECEPT PCB

14 位置 插座 0.100"（2.54mm） 通孔 镀金

得捷:
CONN RCPT 14POS 0.1 GOLD PCB

贸泽:
集管和线壳 14P SIP RECEPT PCB

艾睿:

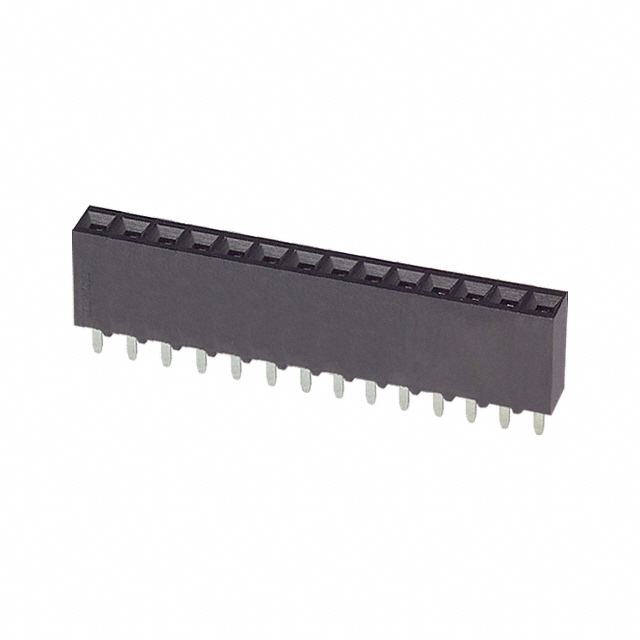

As an added safety precaution, the socket strip 1-534237-2 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This SKT connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. It has a straight body orientation. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 2 A/contact. This product is 35.56 mm long, 8.64 mm tall and 3.56 mm deep. 1-534237-2 is housed in black polychlorinated terphenyl. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method.

Chip1Stop:
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Automotive Tube

MASTER:
RECPT.ASSY, MOD IV, SINGLE ROW, .100CL, VERTICAL BOARD MOUNT, CLOSED, TOP ENTRY, SHORT PNT. OF CONTACT

Powell:
.100 inch AMPMODU Receptacles

Online Components:
14 MODII VRT SR CE 100/115

Electro Sonic:
14 MODII VRT SR CE 100/115
