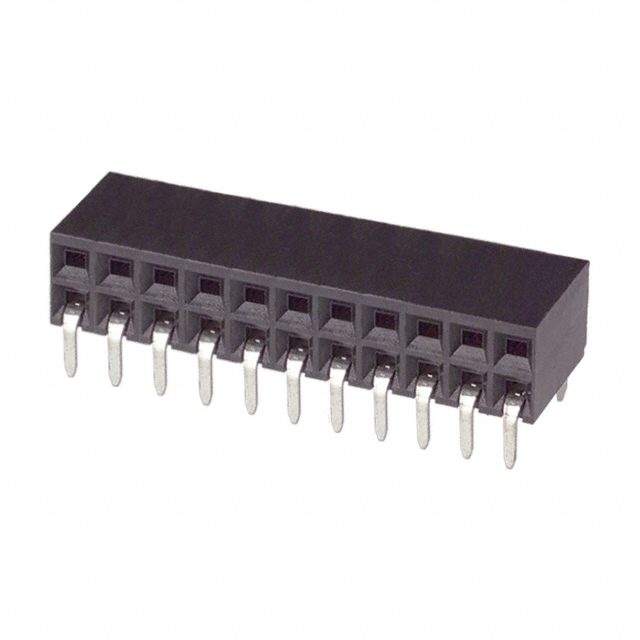

Conn Socket Strip SKT 22POS 2.54mm Solder RA Thru-Hole Gang of Tubes
22 MODII HORZ DR CE EESS .100
得捷:
CONN RCPT 22POS 0.1 GOLD PCB R/A
艾睿:
TE Connectivity&s;s socket strip 1-535512-9 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This SKT connector&s;s 22 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a right angle body orientation. Its pitch is 2.54 mm. It has a socket type gender. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. This product is 27.94 mm long, 6.05 mm tall and 8.13 mm deep. 1-535512-9 is housed in black polychlorinated terphenyl. It uses the solder termination method.
安富利:
Conn Socket Strip SKT 22 POS 2.54mm Solder RA Thru-Hole Gang of Tubes
Verical:
Conn Socket Strip SKT 22 POS 2.54mm Solder RA Side Entry Thru-Hole Automotive Tube
Newark:
# AMP - TE CONNECTIVITY 1-535512-9 22 MODII HORZ DR CE EESS .100 New
MASTER:
AMPMODU MOD II RECEPTACLE ASSEMBLY, HORIZONTAL, .100 CL, 2 ROW, CLOSED-ENTRY, SHORT POINT OF CONTACT, END-TO-END STACKABLE
Powell:
.100 inch AMPMODU Receptacles
Online Components:
22 MODII HORZ DR CE EESS .100
Electro Sonic:
22 MODII HORZ DR CE EESS .100
触点数 22
触点电镀 Gold, Tin Lead
额定电流 2 A
绝缘电阻 5000 MΩ
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 22
额定电流Max 2A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 333 VAC
接触电阻Max 12 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 27.9 mm
宽度 8.13 mm
高度 6.05 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
