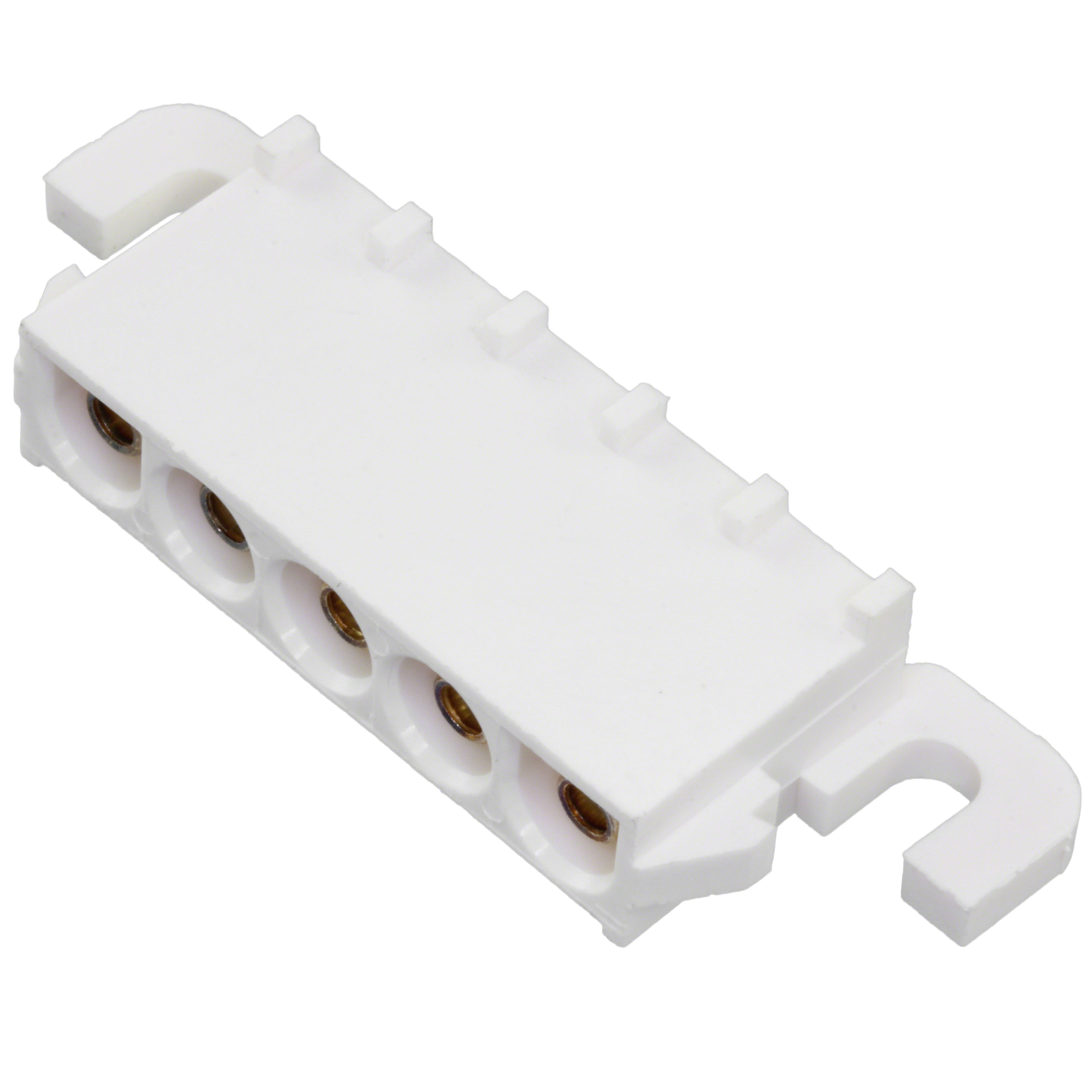

193839-4

Conn Wire to Board HDR 5POS 6.35mm Solder RA Thru-Hole

5 Position Receptacle Connector Through Hole, Right Angle

得捷:
CONN RCPT 5P 0.25 SILVER PCB R/A

艾睿:

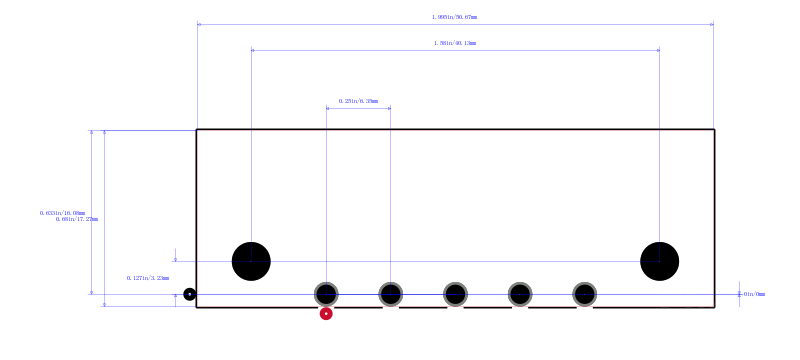

This wire to board 193839-4 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 5 contacts that are made out of copper alloy and plated with silver. It has a header type gender. This is a 1-row connector. Its pitch is 6.35 mm. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. This device has a maximum current rating of 31 A/contact. 193839-4 is housed in natural nylon. This product is 50.67 mm long, 9.14 mm tall and 17.27 mm deep. It uses the solder termination method.

安富利:
Conn Wire to Board HDR 5 POS 6.35mm Solder RA Thru-Hole

Powell:
.250" Centerline, 600 V, 19 - 36 A max
