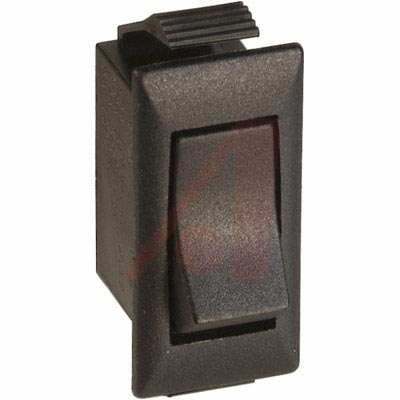

150011E

针脚数 2

额定电压 125 VAC

Actuator Type Rectangle

Application Ideal for upfront applications where both appearance and reliability

Brand/Series 1500 Series

Color, Button Black⁄Red

Contact Form SPST

Current Rating 15 A A

Dielectric Strength 1000 V

Material, Body High Grade Thermoplastic Molding

Material, Contact Silver Inlay over Copper

Mounting Hole Size 0.483 x 1.075 In. In.

Mounting Type Panel Mount

Number of Poles 1 Pole

Number of Positions 2

Operation On-None-Off

Special Features Non-Illuminated

Standards UL Listed, CSA Certified

Termination QC Tabs

Type Rocker

Voltage Rating 125 VAC VAC

RoHS标准 RoHS Compliant

数据手册
