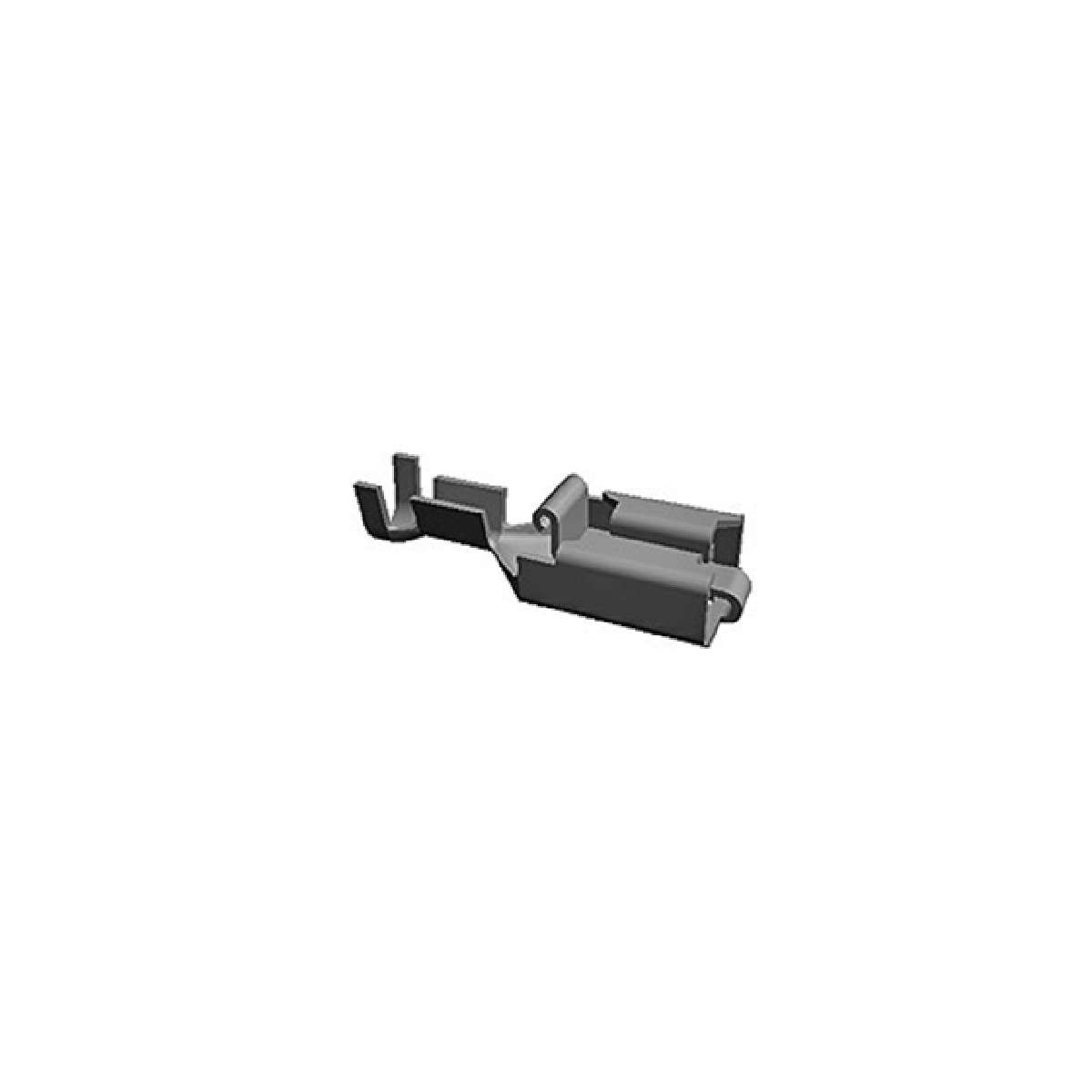

170234-1图片14
170234-1概述

12-10 AWG 直 强制锁 插座 接触端子 连接器

0.250"(6.35mm) 快速连接 母头 10-12 AWG 压接 非绝缘


得捷:
CONN QC RCPT 10-12AWG 0.250


立创商城:
1702341


艾睿:
The best way to connect two terminal blocks in your application is by using the quick disconnect terminal 170234-1 wire terminal from TE Connectivity. It has a female type gender. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 10-12 AWG.


安富利:
Quick Disconnect Terminal 10-12AWG F Tin Strip


Verical:
Quick Disconnect Terminal 10-12AWG Brass RCP 22.1mm Tin T/R


Newark:
# AMP - TE CONNECTIVITY  170234-1  POSITIVE LOCK RECP New


MASTER:
Quick Disconnect Terminal 10-12AWG Brass RCP 22.1mm Tin T/R


Powell:
Positive Lock Connectors


Online Components:
POSITIVE LOCK RECP


Electro Sonic:
POSITIVE LOCK RECP


170234-1中文资料参数规格
技术参数

极性 Female

线规 10AWG ~ 12AWG

触点电镀 Tin

封装参数

封装 -

外形尺寸

长度 22.10 mm

封装 -

物理参数

触点材质 Brass

材质 Brass

工作温度 -40℃ ~ 110℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册
