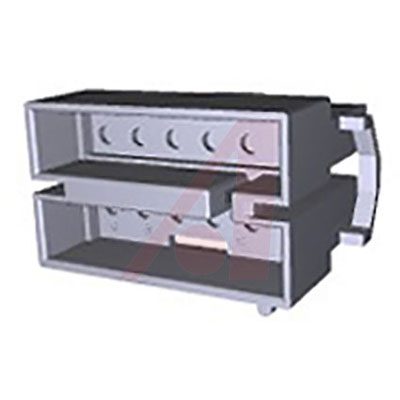

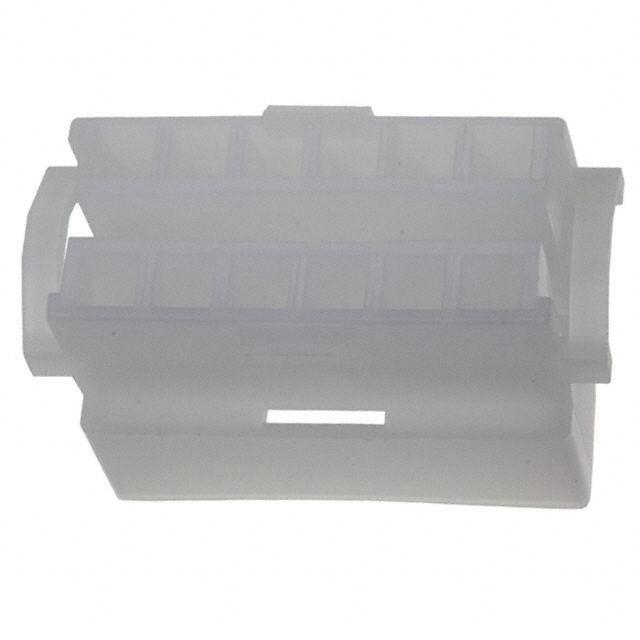

AMP FROM TE CONNECTIVITY 1-480288-0 连接器
12 矩形 - 外壳 插座 天然 0.195"(4.95mm)
得捷:
CONN RCPT HSG 12POS 4.95MM
立创商城:
2x6P
e络盟:
连接器
艾睿:
Whether your needs are small or large, this 1-480288-0 discrete wire housing from TE Connectivity can help you in making a secure linkage between a board and socket. This RCP connector has 12 RCP contacts. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 250 VDC|250VAC. Its pitch is 4.95 mm. This is a 2-row connector. This device has a maximum current rating of 13 A/contact. This product is 38.35 mm long, 19.93 mm tall and 23.62 mm deep. 1-480288-0 is housed in natural nylon. Its wire is 14-30 AWG. This rectangle connector has an operating temperature of -55 to 105 °C.
Allied Electronics:
HOUSING; CAP; SOFT SHELL; MATE-N-LOK; 2POS; POSITIVE LOCK; MOTOR MOUNT; NATURAL
安富利:
Conn Housing RCP 12 POS 4.95mm ST Individual
Chip1Stop:
Conn Housing RCP 12 POS 4.95mm ST Individual
Verical:
Conn Housing RCP 12 POS 4.95mm ST Panel Mount Natural Package
Newark:
# AMP - TE CONNECTIVITY 1-480288-0 Connector Housing, Motor Mount, Commercial MATE-N-LOK Series, Plug, 12 Positions, 4.95 mm
MASTER:
CAP, 12 CIRCUIT, MOTOR MOUNT, COMMERCIAL MATE-N-LOKTM
Powell:
.200" Centerline, 250 V, 13 A max.
Online Components:
12P CMNL CAP HSG M/M NATL
Electro Sonic:
12P CMNL CAP HSG M/M NATL
触点数 12
极性 Male
绝缘电阻 500 MΩ
排数 2
电路数 12
易燃性等级 UL 94 V-2
针脚数 12
拔插次数 50
额定电流Max 13A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Panel
封装 Housing
引脚间距 5.08 mm
长度 38.35 mm
宽度 23.62 mm
高度 23.62 mm
封装 Housing
引脚间距 5.08 mm
外壳颜色 Natural
颜色 Natural
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 Signal, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
