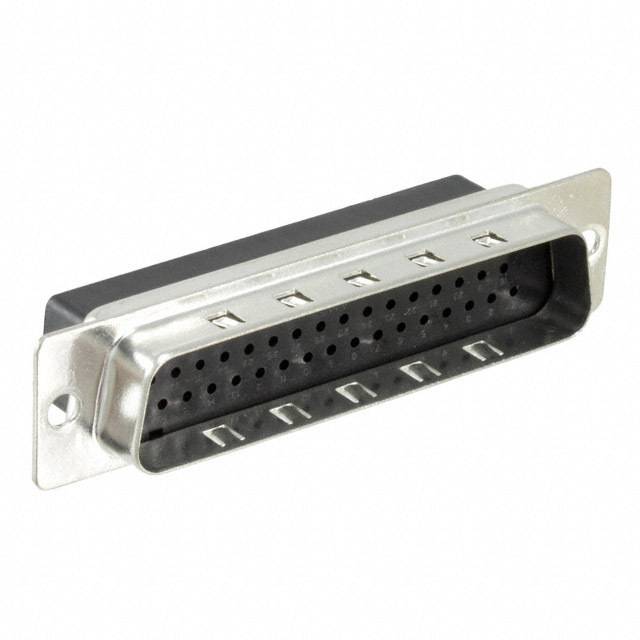

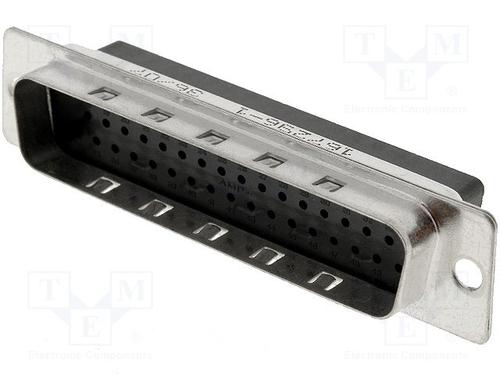

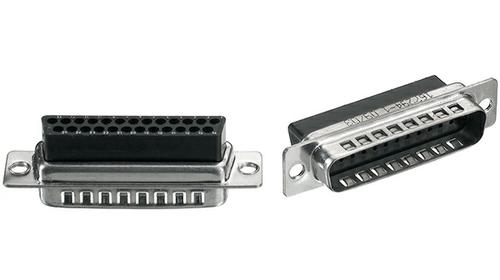

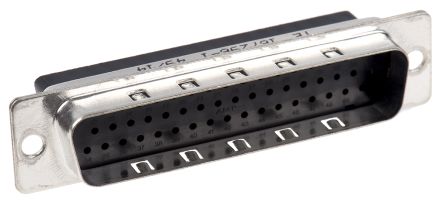

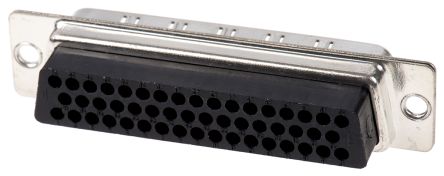

167296-1

HD-20 系列标准连接器具有 Sub-D 外壳，带金属底壳，用于压接触点（库存号从 301-8357 开始）。 符合主要市场标准。 材料 | \- 底壳：  镀锡钢 \- 插件：  玻璃强化，UL 94-V0 ---|--- ### TE Connectivity AMPLIMITE D - 超微型连接器Amplimite 系列的连接器和附件。适合于军事应用、工业应用或者商业应用和计算机接口连接等等

外壳，用于压接触点

HD-20 系列标准具有 Sub-D 外壳，带金属底壳，用于压接触点（库存号从 301-8357 开始）。

符合主要市场标准。

### AMPLIMITE D - 超微型连接器

欧时:
### 外壳，用于压接触点HD-20 系列标准连接器具有 Sub-D 外壳，带金属底壳，用于压接触点（库存号从 301-8357 开始）。 符合主要市场标准。 材料 | \- 底壳：  镀锡钢 \- 插件：  玻璃强化，UL 94-V0 ---|--- ### TE Connectivity AMPLIMITE D - 超微型连接器Amplimite 系列的连接器和附件。适合于军事应用、工业应用或者商业应用和计算机接口连接等等

得捷:
CONN D-SUB HOUSING PLUG 50POS

艾睿:
Communicating with serial connections is made easy with this 167296-1 DVI connector from TE Connectivity. This plug connector&s;s 50 contacts that are made out of brass and plated with gold. This 3-row connector has a single port. It has a straight body orientation. 167296-1 is housed in thermoplastic. This device has a maximum current rating of 3.7 A/contact. This DVI connector has an operating temperature of -55 to 105 °C. Its 50 terminals use the crimp termination method. This product is 55.3 mm long, 15.4 mm tall and 17.6 mm deep.

Allied Electronics:
AMPLIMITE HDP-20 Series Straight Crimp D-sub Connector, Plug, 50 Way

安富利:
Conn Housing PL 50 POS Crimp ST

TME:
D-Sub; for size 20 terminals; PIN:50; male; w/o contacts

Verical:
Conn D-Subminiature M 50 POS 1.37mm Crimp ST Cable Mount 50 Terminal 1 Port Box

MASTER:
HDP-20 PLUG CONNECTOR, SIZE 1-4

Powell:
Standard Cable Connectors

Online Components:
50P.HDP20 PLUG ASSY

Electro Sonic:
50P.HDP20 PLUG ASSY
