SCHURTER 1241.1104.7093 按钮开关, SPST-常开, 关-开, 24 V, 80 mA, 焊接

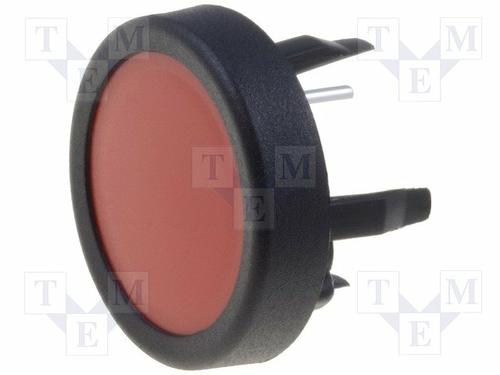

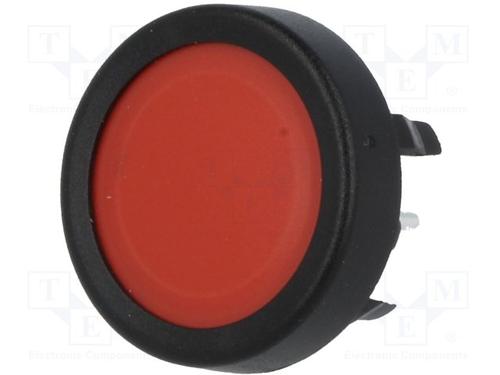

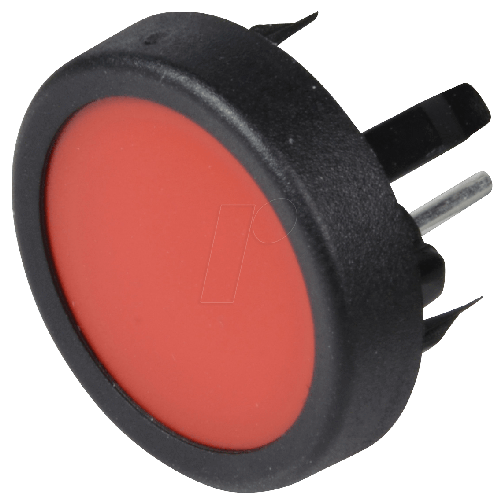

The from is a MCS 18 momentary action pushbutton switches. It is an unique round shaped mechanical switch with tactile feedback and has an extremely high mechanical life time of 5 million switching.
- .
- Silver plated contacts
- .
- Maximum switching voltage is 48VDC
- .
- Maximum switching current is 125mA
- .
- Actuating force is 3N
- .
- Ambient temperature range from -25°C to 60°C
- .
- IP65 degree of protection
- .
- Black colour bezel
- .
- Red colour of face foil without legend
- .
- Small mounting depth
额定电压DC 48 V
额定电流 0.125 A
排数 1
触点类型 SPST-NO
接触电阻 50.0 mΩ
额定电流Max 0.125A @48VDC
工作温度Max 60 ℃
工作温度Min -25 ℃
额定电压 48 VDC
接触电阻Max <50 mΩ
安装方式 Panel
封装 -
长度 18 mm
宽度 18 mm
封装 -
颜色 Red
触点材质 Silver
工作温度 -25℃ ~ 60℃
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, Industrial, 自动化与过程控制, 工业, 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1241.1104.7093 Schurter | 当前型号 | 当前型号 |
1241.1104.7095 Schurter | 类似代替 | 1241.1104.7093和1241.1104.7095的区别 |
