Conn High Density D-Sub PIN 15POS Solder Cup ST Panel Mount 15 Terminal 1Port
15 位 D-Sub，高密度 插头，公引脚
得捷:
CONN D-SUB HD PLUG 15P SLDR CUP
贸泽:
D-Sub High Density Connectors 15 POS HD SOLDER CUP AWG 22 MALE THREADED
艾睿:

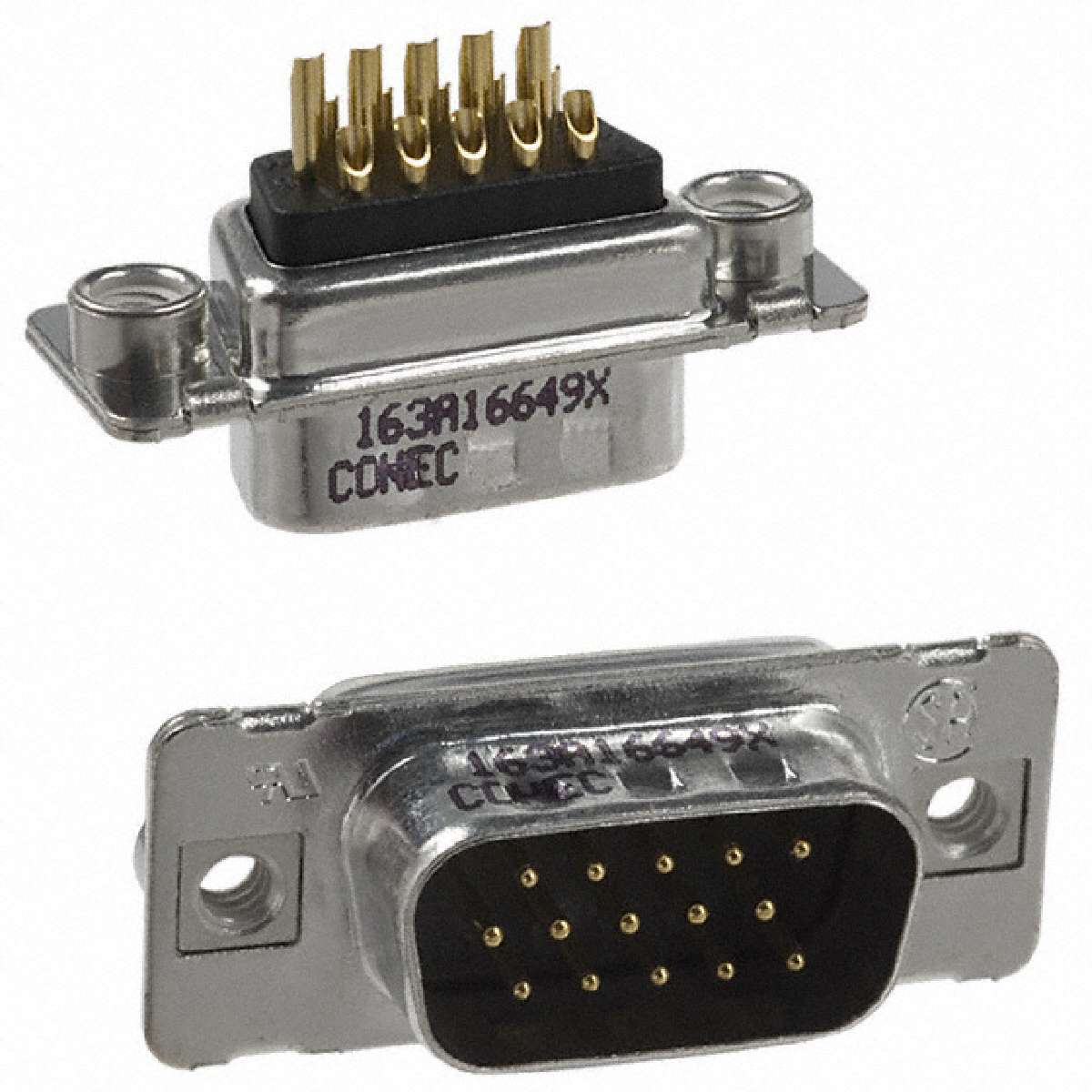

The high density d-sub 163A16649X DVI connector from Conec is perfect for communication between serial connections in your system. This 3-row connector has a single port. It has a straight body orientation. 163A16649X is housed in steel. Its 15 terminals use the solder cup termination method. This product is 12.93 mm tall.
Chip1Stop:
Conn High Density D-Sub PIN 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port
Verical:
Conn High Density D-Sub PIN 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port
触点数 15
极性 Male
线规 22 AWG
触点电镀 Gold
额定电流 3 A
排数 3
易燃性等级 UL 94 V-0
针脚数 15
拔插次数 50
额定电流Max 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 60 V
额定电压 60 V
工作电压Max 60 V
接触电阻Max 10 mΩ
长度 31.2 mm
宽度 12.9 mm
高度 12.93 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
