1325-0概述

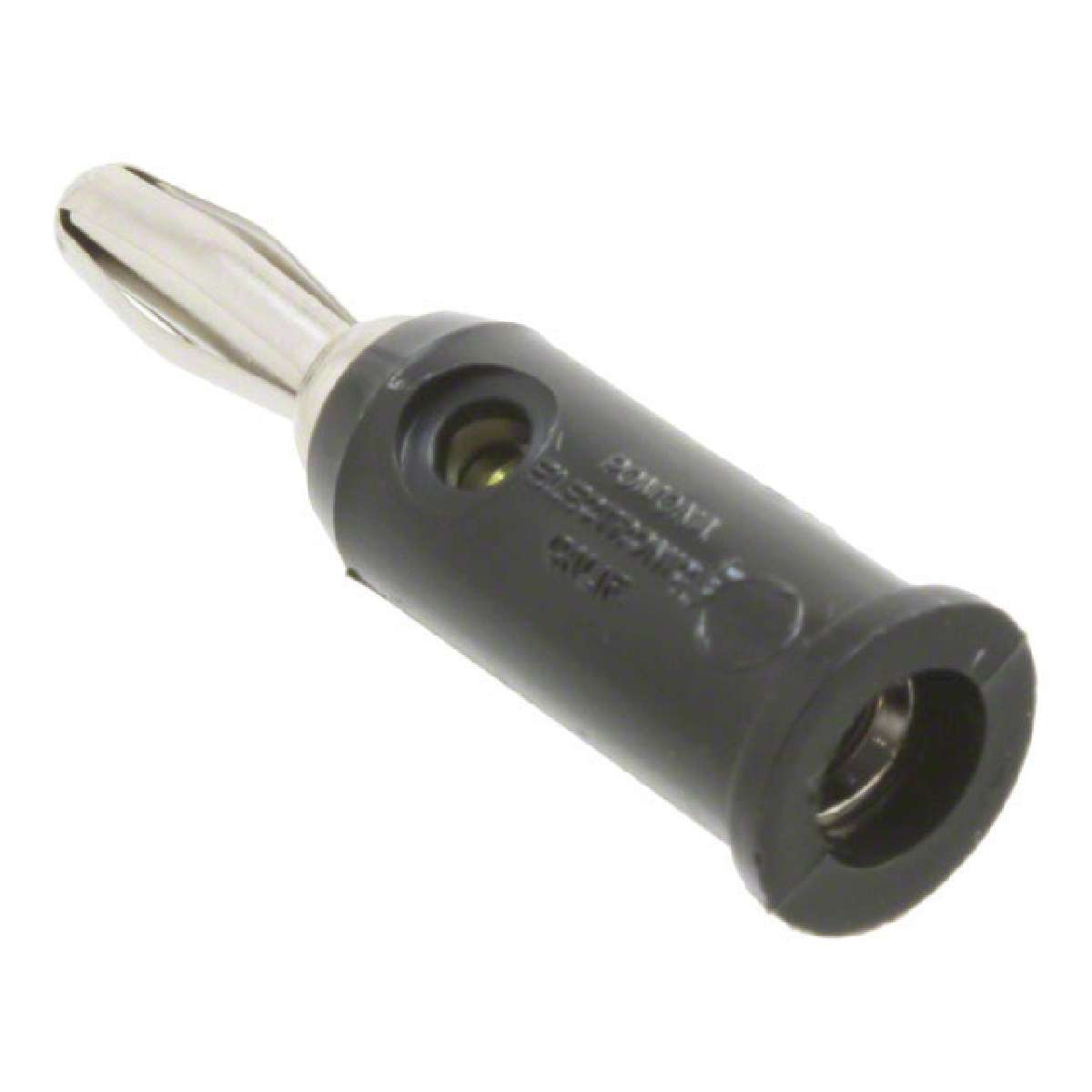

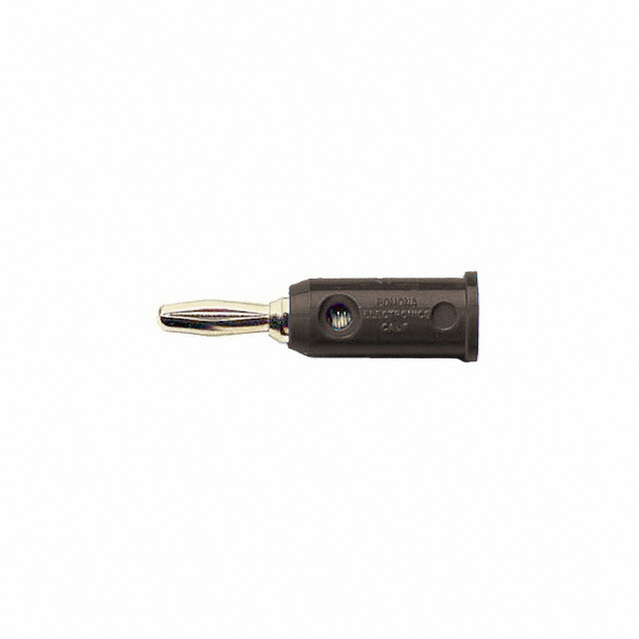

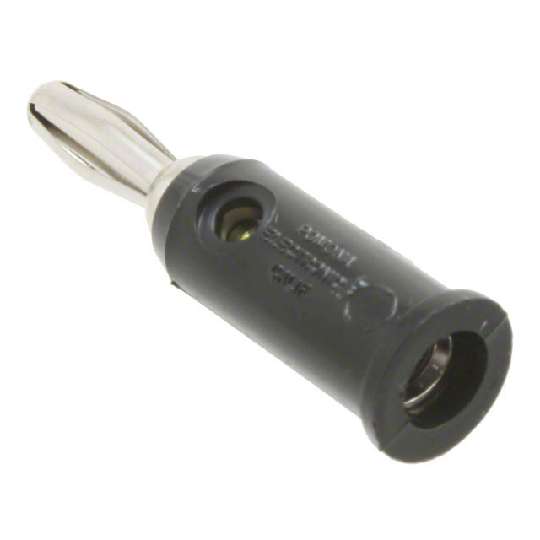

POMONA  1325-0.  香蕉插孔

Standard Banana Jacks, Solderless and Stackable, 5000 VRMS, 15 A, +122 °F

**Jack, Standard Banana Jack, Solderless and Stackable, 15 Amps, Black

**


得捷:
CONN BANANA PLUG STACK SLDRLESS


e络盟:
自行动手, 非焊接, 可堆叠, 香蕉连接器, 公, 10件装, 黑色


艾睿:
Testing is a crucial part of designing, use this banana 1325-0 test terminal block from Pomona to connect abnormal wires together. This PL connector&s;s a single contact that is made out of brass and plated with nickel. This connector has a single port. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 15 A. This product is 39.36 mm long. Its wire is 18-22 AWG. It uses the screw termination method. This test terminal block has a maximum operating temperature of 50 °C. 1325-0 is housed in black acrylonitrile butadiene styrene.


Allied Electronics:
Conn; Test; Banana; Plug; Pnl Mnt; Screw Term; Black; 18-22 AWG; Insulated; 1325 Series


Chip1Stop:
Conn Banana Plug PL 1 POS Screw ST Cable Mount 1 Port


TME:
Plug; 4mm banana; 15A; black; with transversal socket; 5kV


Verical:
Conn Banana Plug PL 1 POS Screw ST Cable Mount 1 Port


Newark:
# POMONA  1325-0  Do It Yourself Solderless Stackup Banana Plug, 10 per Package, Black


MASTER:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


Online Components:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


Electro Sonic:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


1325-0中文资料参数规格
技术参数

触点数 1

极性 Male

线规 18AWG ~ 22AWG

触点电镀 Nickel

额定电压DC 5.00 kV

额定电流 15 A

针脚数 1

额定电流Max 15 A

工作温度Max 50 ℃

额定电压 5 kV

封装参数

安装方式 Screw

外形尺寸

长度 39.36 mm

高度 39.4 mm

直径 4.22 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Beryllium Copper

绝缘材质 Acrylonitrile Butadiene Styrene ABS

工作温度 50 ℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 研究开发, 测试与测量, Manufacturing, Test & Measurement, 声音和视频, Sound & Video, Research & Development, Aerospace, Electrical, 电气, 生产制造, 电子设计, 航天, 校准, Electronics Design, 仪器仪表, Calibration, Instrumentation, Computer Hardware, 计算机硬件

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

HTS代码 8536694050

数据手册

在线购买1325-0
型号: 1325-0
制造商: Pomona Electronics
描述:POMONA  1325-0.  香蕉插孔
替代型号1325-0
型号/品牌 代替类型 替代型号对比

1325-0

Pomona Electronics

当前型号

当前型号

1325-2

Pomona Electronics

完全替代

1325-0和1325-2的区别

1325-6

Pomona Electronics

完全替代

1325-0和1325-6的区别

1325-1

Pomona Electronics

完全替代

1325-0和1325-1的区别
