FFC & FPC连接器 11P 1.00MM VERT SMD
1MM FFC SMT V ASSY 11P EMBOSS
Product Highlights
1.00 mm Centerline
Number of Positions = 11
PCB Mount Angle = Vertical
PCB Mount Style = Surface Mount
Contact Type = Top
得捷:
CONN FFC FPC VERT 11POS 1MM SMD
贸泽:
FFC & FPC连接器 11P 1.00MM VERT SMD
艾睿:

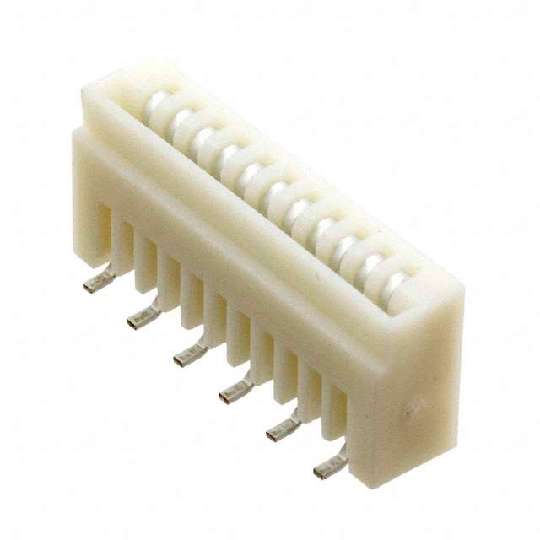

Thanks to TE Connectivity&s;s fpc connector 1-84982-1 flexible flat cable, you can keep the size of your project and the number of disorganized electrical lines down to a minimum. Its pitch is 1 mm. This socket type connector&s;s 11 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 125 VAC. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 13 mm long, 5.6 mm tall and 4.4 mm deep. 1-84982-1 is housed in beige polyphthalamide. It uses the solder termination method.
安富利:
Conn FPC Connector SKT 11 POS 2mm Solder ST SMD T/R
Chip1Stop:
Conn FPC Connector SKT 11 POS 2mm Solder ST SMD T/R
Verical:
Conn FPC Connector SKT 11 POS 1mm Solder ST SMD T/R
Newark:
# AMP - TE CONNECTIVITY 1-84982-1 1MM FFC SMT V ASSY 11P EMBOSS New
MASTER:
ASSY, 1.00MM FFC CONN SMT, V NON-ZIF
Powell:
FPC Flexible Printed Circuit Connectors
Online Components:
1MM FFC SMT V ASSY 11P EMBOSS
Electro Sonic:
1MM FFC SMT V ASSY 11P EMBOSS
触点数 11
触点电镀 Tin
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 11
屏蔽 No
额定电流Max 1A/触头
额定电压Max 125 VAC
额定电压 125 V
安装方式 Surface Mount
长度 13 mm
宽度 4.4 mm
高度 5.6 mm
外壳颜色 Beige
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
