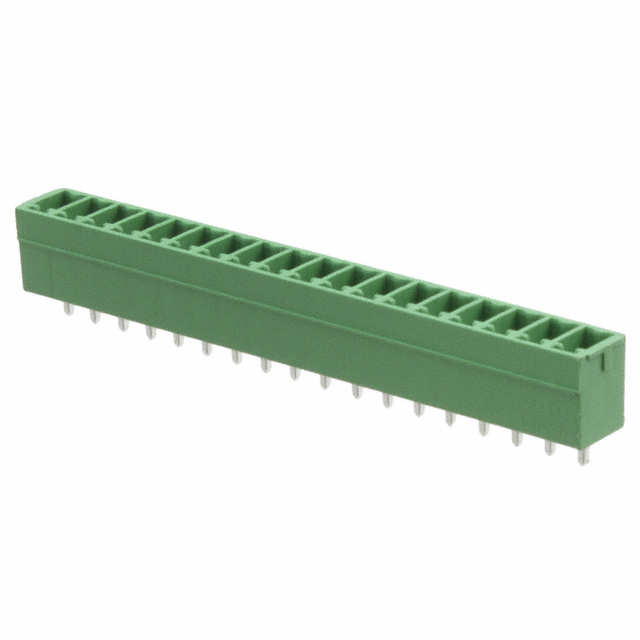

Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 18路 3.81mm节距 1844906, 焊接端接, 8A
Conn Wire to Board HDR 18 POS 3.81mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 18POS VERT 3.81MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 18路 3.81mm节距 1844906, 焊接端接, 8A
立创商城:
3.81mm 排数:1 每排P数:18
艾睿:
Safety is an important concern when designing electronic devices. Phoenix Contact&s;s wire to board 1844906 header connector helps protect your equipment from accidental shortages. This HDR connector has 18 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 160 V. It has a straight body orientation. This is a 1-row connector. Its pitch is 3.81 mm. This device has a maximum current rating of 8 A. This product is 69.97 mm long, 9.2 mm tall and 7.25 mm deep. 1844906 is housed in green polybutylene terephthalate. It uses the solder termination method.
Verical:
Conn Wire to Board HDR 18 POS 3.81mm Solder ST Thru-Hole
MASTER:
Conn Wire to Board HDR 18 POS 3.81mm Solder ST Thru-Hole
Online Components:
Conn Wire to Board HDR 18 POS 3.81mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
