间距5.08 14位 母座 带法兰 12A 320V 弯插
14 针位端子块 接头，公引脚，带罩（4 面） 0.200"（5.08mm） 90°，直角 - 通孔
得捷:
TERM BLOCK HDR 14POS 5.08MM
立创商城:
5.08mm 排数:1 每排P数:14
艾睿:

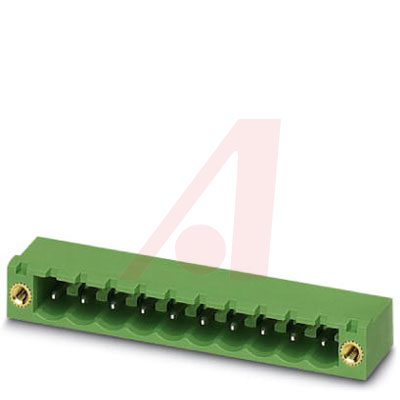

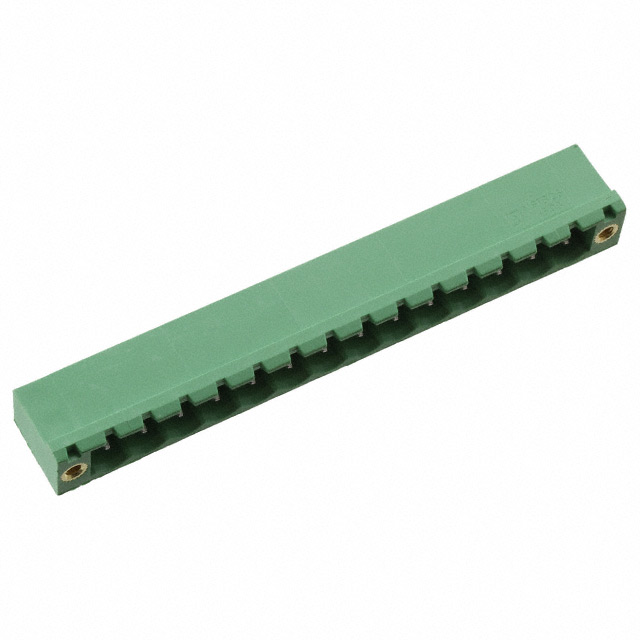

Thanks to Phoenix Contact&s;s shrouded 1776621 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector has 14 contacts that are plated with tin. It has a header type gender. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 12 A. It uses the solder termination method. 1776621 is housed in green polybutylene terephthalate. This product is 81.28 mm long, 8.6 mm tall and 12 mm deep.
Allied Electronics:
MSTB Series, 5.08mm Pitch 14 Way 1 Row Straight PCB Header, Solder Term, 12A
Verical:
Conn Shrouded Header 4 Sides HDR 14 POS 5.08mm Solder RA Side Entry Thru-Hole
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 14 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]:
Online Components:
Conn Shrouded Header HDR 14 POS 5.08mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
