1757585

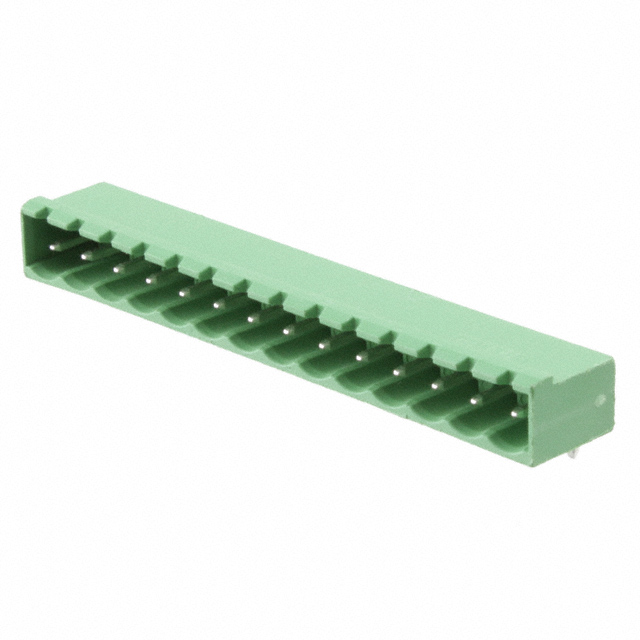

Phoenix Contact PCB 接线端子块 COMBICON MSTBA 系列 14路 5mm节距 1757585, 焊接端接, 12A

14 针位端子块 接头，公引脚，带罩（4 面） 0.197"（5.00mm） 90°，直角 - 通孔

得捷:
TERM BLOCK HDR 14POS 90DEG 5MM

欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTBA 系列 14路 5mm节距 1757585, 焊接端接, 12A

贸泽:
可插拔接线端子 14 Pos 5mm pitch Through Hole Header

艾睿:
Look no further than the shrouded 1757585 header connector from Phoenix Contact, a great tool to use when board-to-board interconnects is required. This HDR connector has 14 contacts that are plated with tin. Its pitch is 5 mm. It has a header type gender. This is a 1-row connector. It has a right angle body orientation. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. This product is 72 mm long, 8.6 mm tall and 12 mm deep. It uses the solder termination method. 1757585 is housed in green polybutylene terephthalate.

Verical:
Conn Shrouded Header 4 Sides HDR 14 POS 5mm Solder RA Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 14 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.5

Online Components:
Conn Shrouded Header HDR 14 POS 5mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
