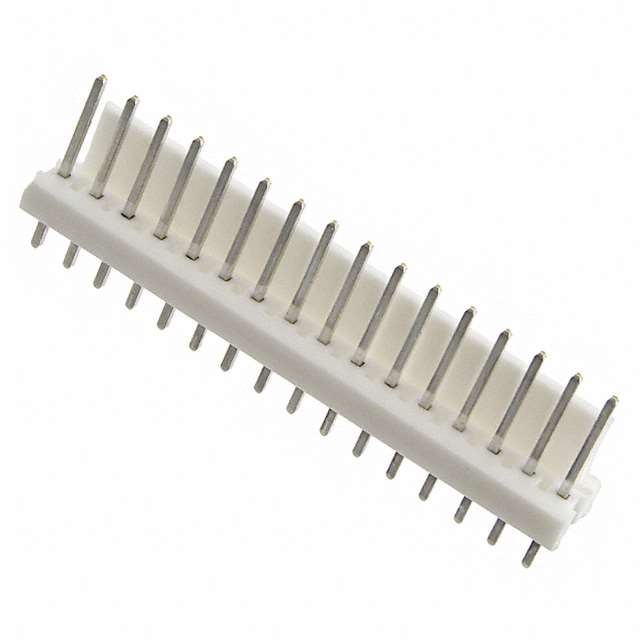

1-640454-6

Conn Wire to Board HDR 16POS 2.54mm Solder ST Thru-Hole

针座 通孔 16 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 16POS 2.54MM

贸泽:
Headers & Wire Housings POLARIZED HEADER 16P Straight Post tin

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s wire to board 1-640454-6 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 16 contacts that are made out of copper alloy and plated with tin. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 5 A/contact. This product is 40.64 mm long, 10.03 mm tall and 5.72 mm deep. 1-640454-6 is housed in white polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Wire to Board HDR 16 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Wire to Board HDR 16 POS 2.54mm Solder ST Thru-Hole Package

Verical:
Conn Wire to Board HDR 16 POS 2.54mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  1-640454-6  16P MTA100 HDR ASSY SQ STR POL New

MASTER:
MTA-.100 HDR ASSY, POLARIZED, NOTCHED, .025 SQUARE STRAIGHT POST, TIN PLATED

Online Components:
16P MTA100 HDR ASSY SQ STR POL

Electro Sonic:
16P MTA100 HDR ASSY SQ STR POL
