1759020

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm 端子块管座专业系列的 Phoenix Contact MSTB 系列 5.0 mm 节距端子块，提供 24-12 线规范围提供各种位置 提供直向和 90° 型号 提供线对板或线对线 5.08 mm 节距 颜色：绿色 螺钉或焊接连接 ### Phoenix Contact COMBICON 5.08mm 两件式端子块

Contact CLASSIC COMBICON MSTB 5.08mm 端子块管座

专业系列的 Phoenix Contact MSTB 系列 5.0 mm 节距端子块，提供 24-12 线规范围

提供各种位置

提供直向和 90° 型号

提供线对板或线对线

5.08 mm 节距

颜色：绿色

螺钉或焊接连接

### Phoenix Contact COMBICON 5.08mm 两件式端子块

欧时:

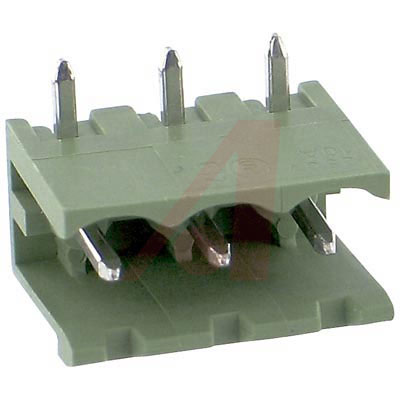

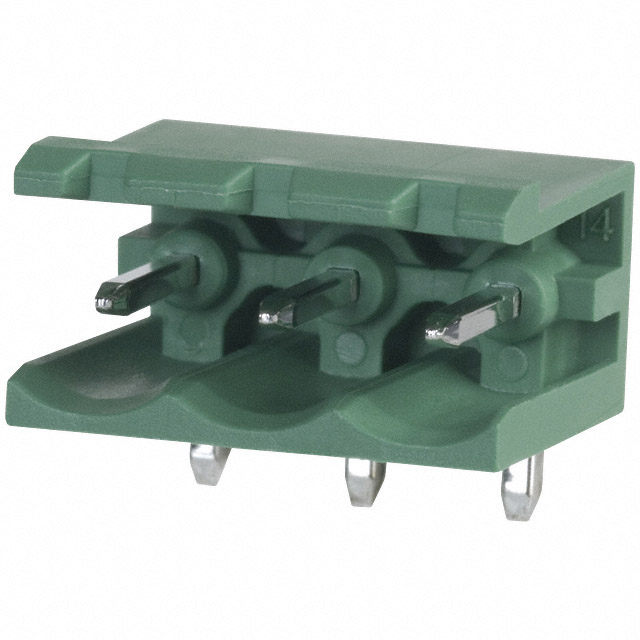

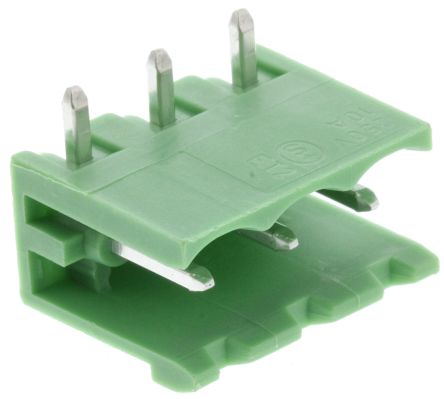

Phoenix Contact PCB 接线端子块 COMBICON MSTB 系列 3路 5.08mm节距 1排 直角 1759020, 焊接端接, 12A

得捷:
TERM BLOCK HDR 3POS 90DEG 5.08MM

立创商城:
板端/插座-开口 5.08mm 排数:1 每排P数:3 弯针

艾睿:
Use this shrouded 1759020 header connector from Phoenix Contact where IDC ribbon cables are used. This HDR connector has 3 contacts that are plated with tin. This is a 1-row connector. It has a header type gender. It has a right angle body orientation. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. It uses the solder termination method. This product is 15.24 mm long, 8.6 mm tall and 12 mm deep. 1759020 is housed in green polybutylene terephthalate.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 3Pole; 5.08mmPitch; COMBICON

Verical:
Conn Shrouded Header 2 Sides HDR 3 POS 5.08mm Solder RA Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3

Online Components:
Conn Shrouded Header HDR 3 POS 5.08mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
