1-1586585-0

VAL-U-LOK 10 位置 通孔 双排 直 插针针座

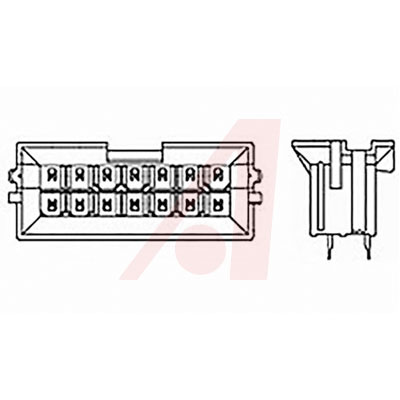

** VAL-U-LOK Blindmate Header Connectors**

VAL-U-LOK dual row wire to board blindmate header connectors with a 4.2mm centerline, positive latching and keying for secure mating and boardlocks for secure connection to PCB. These VAL-U-LOK blindmate headers are made from natural Colored nylon with a UL 94V-0 or UL 94V-2 flammability rating, have tin plated brass contacts and are available with drain holes that allow solution to run through the connector during the soldering process. Part numbers X-1586585-X - UL 94V-2 housings with drain holes Part numbers X-1586586-X - UL 94V-2 housings without drain holes Part numbers X-1586587-X - UL 94V-0 housings with drain holes Part numbers X-1586588-X - UL 94V-0 housings without drain holes
