可插拔接线端子 3 Pos 3.81mm pitch Thru Hole Invert Hdr
Conn Wire to Board F 3 POS 3.81mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 3POS 90DEG 3.81MM
贸泽:
可插拔接线端子 3 Pos 3.81mm pitch Thru Hole Invert Hdr
艾睿:

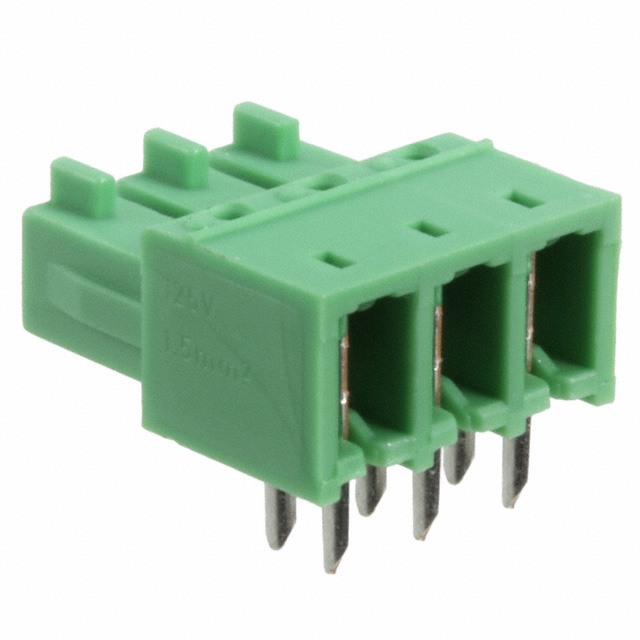

Support physical configuration options for jumper posts by mounting this wire to board 1862580 header connector from Phoenix Contact. This F connector has 3 contacts that are plated with tin. It has a right angle body orientation. Its pitch is 3.81 mm. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 8 A. 1862580 is housed in green polyamide. It uses the solder termination method. This product is 12.22 mm long, 6.58 mm tall and 14.5 mm deep.
Verical:
Conn Wire to Board F 3 POS 3.81mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 3 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Wire to Board F 3 POS 3.81mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
