1-5102155-2

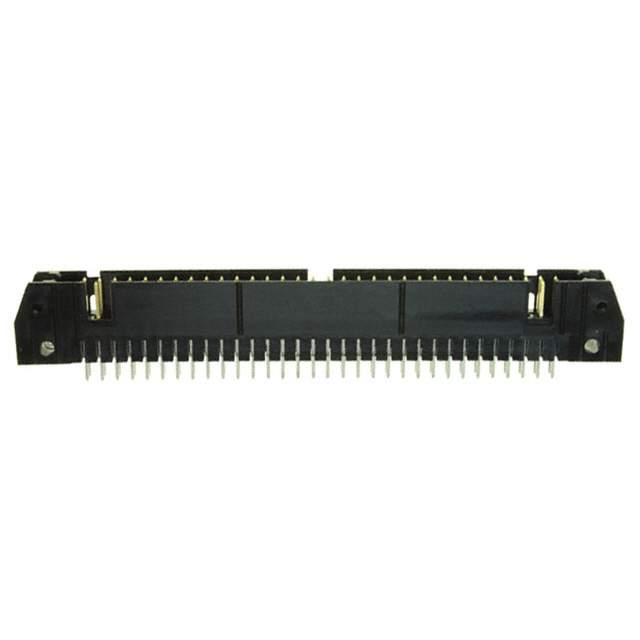

Conn Ejector Header HDR 64POS 2.54mm Solder ST Thru-Hole

针座 通孔 64 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 64POS 2.54MM

贸泽:
Headers & Wire Housings A/L UNIV HDR 64P VRT VERTICAL

艾睿:

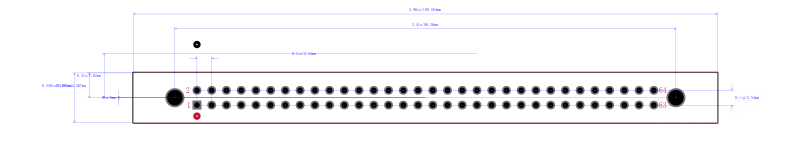

This ejector 1-5102155-2 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 64 contacts that are made out of phosphor bronze|brass and plated with gold over palladium nickel|gold over nickel. It has a maximum voltage rating of 250 VAC. It has a header type gender. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This connector has an operating temperature of -65 to 105 °C. 1-5102155-2 is housed in black nylon|polyester. It uses the solder termination method. This product is 100.58 mm long, 13.94 mm tall and 8.53 mm deep.

安富利:
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  1-5102155-2  A/L UNIV HDR 64P VERT New

MASTER:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
A/L UNIV HDR 64P VERT

Electro Sonic:
A/L UNIV HDR 64P VERT
