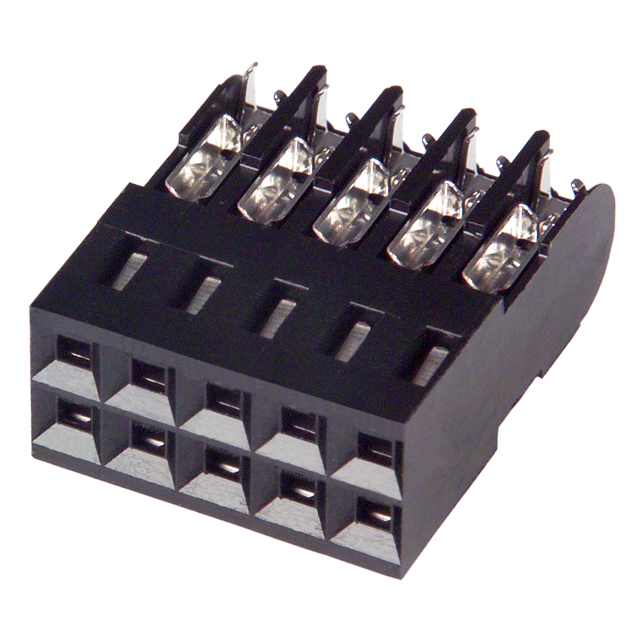

102393-3

Conn IDC Connector RCP 10POS 2.54mm IDT ST Cable Mount

10 AMPMODU MT ASSY DR .100CL

Product Highlights

Receptacle Assembly

Wire Termination Type = Insulation Displacement Crimp IDC

Number of Positions = 10

Number of Rows = Dual

Terminate To Wire

得捷:
CONN RCPT 10P IDC 26-30AWG GOLD

艾睿:
Reduce safety concerns with this idc connector 102393-3 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This RCP connector&s;s 10 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a receptacle type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. 102393-3 is housed in black thermoplastic. This product is 12.7 mm long, 6.96 mm tall and 15.24 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the idt termination method.

Verical:
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount

Newark:
# AMP - TE CONNECTIVITY  102393-3  10 AMPMODU MT ASSY DR .100CL New

MASTER:
ASSEMBLY, MASS TERMINATION, AMPMODU, DOUBLE ROW, .100 X .100 CL, #26-#30 AWG WIRE SIZE

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
10 AMPMODU MT ASSY DR .100CL

Electro Sonic:
10 AMPMODU MT ASSY DR .100CL
