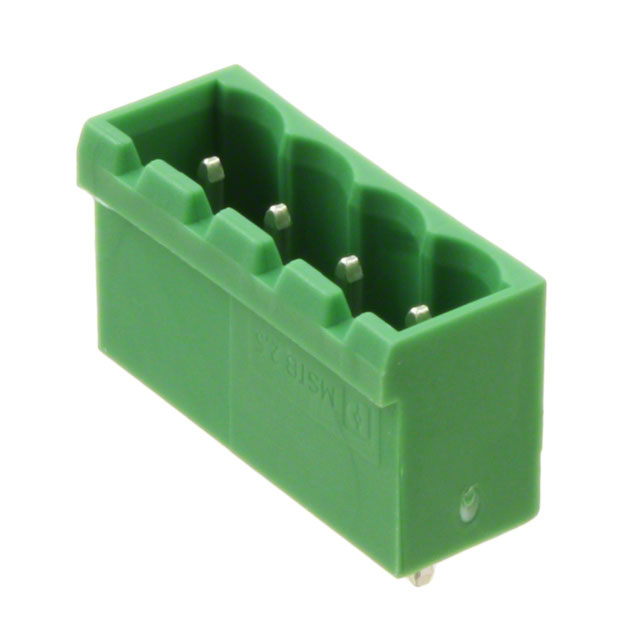

Phoenix Contact PCB 接线端子块 COMBICON MSTBVA 系列 4路 5mm节距 1924211, 焊接端接, 16A
Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 4POS VERT 5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTBVA 系列 4路 5mm节距 1924211, 焊接端接, 16A
贸泽:
Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header
艾睿:
Phoenix Contact&s;s shrouded 1924211 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector has 4 contacts that are plated with tin. It has a maximum voltage rating of 320 V. It has a straight body orientation. Its pitch is 5 mm. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 16 A. This product is 22 mm long, 12 mm tall and 8.6 mm deep. 1924211 is housed in green polyamide. It uses the solder termination method.
Verical:
COMBICON HC headers, 5.0 mm pitch, color: green, no. of positions 4, dimension a 15 mm
MASTER:
PCB headers - nominal current: 16 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 4 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.9
Online Components:
Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 16 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
