1-103414-4

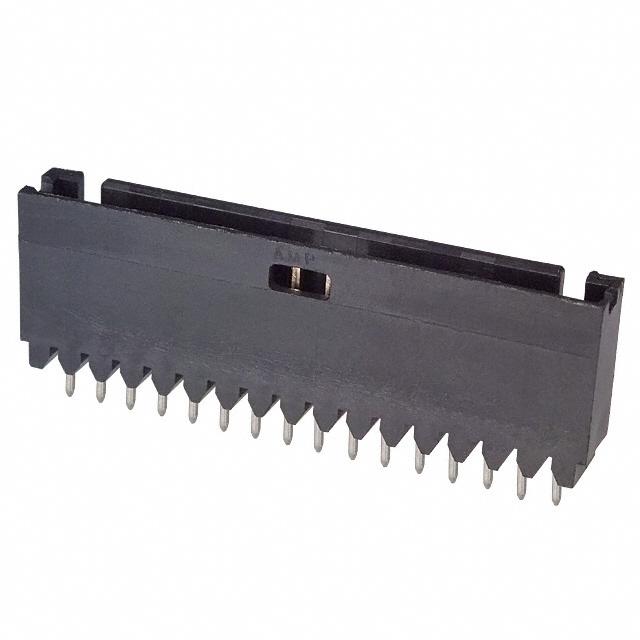

Conn Shrouded Header HDR 16POS 2.54mm Solder ST Thru-Hole

16 MODII HDR SRST SHRD .100CL

Product Highlights

Header

Header Type = Shrouded

Number of Rows = Single

Number of Positions = 16

Mating Post Length = 6.10 mm

得捷:
CONN HEADER VERT 16POS 2.54MM

艾睿:
Look no further than the shrouded 1-103414-4 header connector from TE Connectivity, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 16 contacts that are made out of copper alloy and plated with gold over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 43.69 mm long, 13.94 mm tall and 5.77 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. 1-103414-4 is housed in black thermoplastic.

安富利:
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Automotive Tube

Newark:
# AMP - TE CONNECTIVITY  1-103414-4  16 MODII HDR SRST SHRD .100CL

MASTER:
ASSEMBLY, MOD II, HEADER, SINGLE ROW .100 C/L, 4 SIDED SHROUD

Powell:
.100 inch AMPMODU Headers

Online Components:
ASSEMBLY, MOD II, HEADER, SINGLE ROW .100 C/L, 4 SIDED SHROUD

Electro Sonic:
16 MODII HDR SRST SHRD .100CL
