可插拔接线端子 PTSM 0,5/ 3-HV-2,5 THR R32
Pluggable Miniature Connectors
The PTSM and PTPM connector systems provide for reliable, compact connections and are ideal for any situation with space limitations.
**Features:
**
* Capable of Through-Hole-Reflow and True Surface Mount
* Surface Mount Headers Works with Metal Core Boards MCBs Prevalent in the LED Lighting Industry
得捷:
TERM BLOCK HDR 3POS VERT 2.5MM
贸泽:
可插拔接线端子 PTSM 0,5/ 3-HV-2,5 THR R32
艾睿:

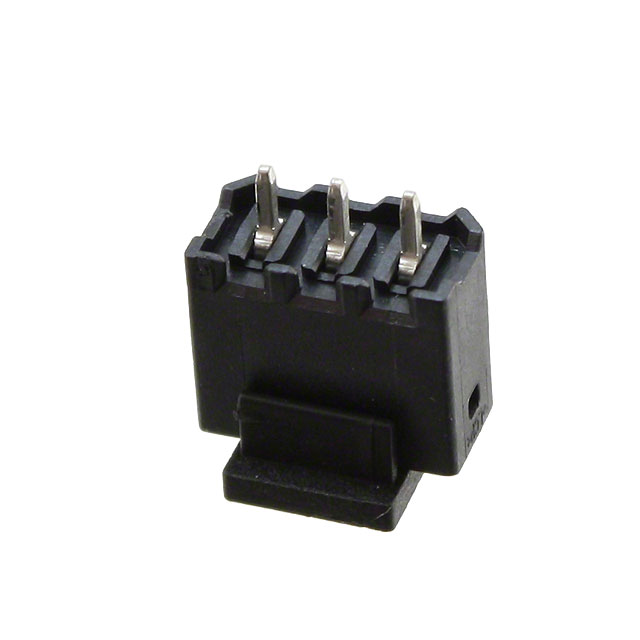

Use this shrouded 1778560 connector from Phoenix Contact when board-to-board interconnects is required. This HDR connector has 3 contacts that are plated with tin. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 160 V. This is a 1-row connector. Its pitch is 2.5 mm. This device has a maximum current rating of 6 A. This product is 9.2 mm long, 7.5 mm tall and 5 mm deep. It uses the solder termination method. 1778560 is housed in black liquid crystal polymer.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; SMT; Sldr; 3Pole; 2.5mmPitch; COMBICONSeries
Verical:
Conn Shrouded Header HDR 3 POS 2.5mm Solder ST Thru-Hole T/R
Online Components:
Conn Shrouded Header HDR 3 POS 2.5mm Solder ST Thru-Hole T/R
Electro Sonic:
PCB headers - nominal current: 6 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - ...
