103956-1

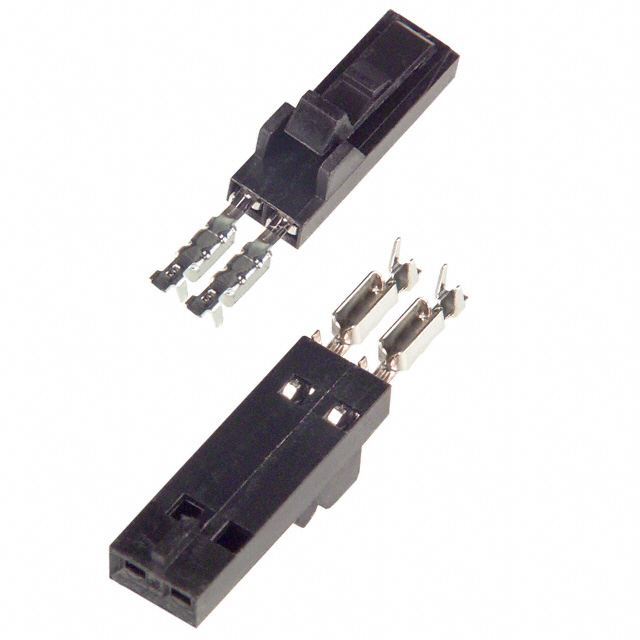

Conn IDC Connector RCP 2POS 2.54mm IDT ST Cable Mount Tube

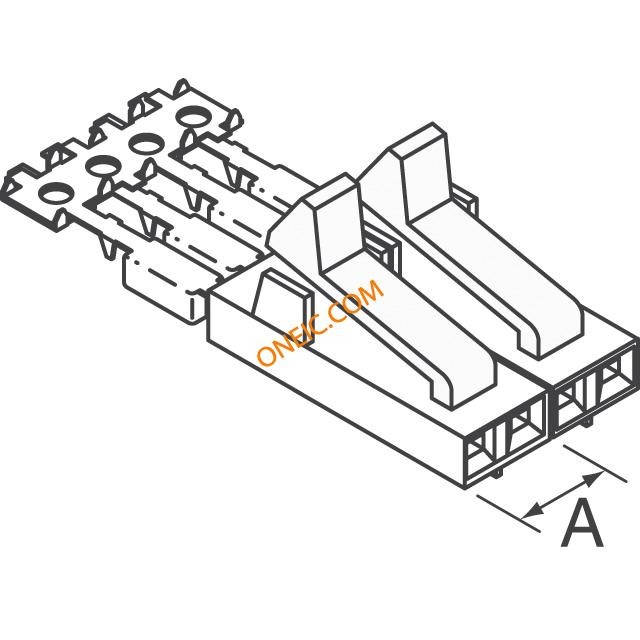

**AMPMODU MTE 2.54mm IDC Strip Form Polarized/Latching Receptacle Assemblies**

AMPMODU MTE IDC latching receptacle assemblies pre-loaded with phosphor bronze insulation displacement contacts on 2.54mm centers. These AMPMODU MTE IDC polarized receptacle housings are made from 94V-0 rated black thermoplastic and are supplied in strip form with varying quantities of housings per strip segment please see table for details. The contacts are furnished on carrier strips which are interlocked for stability and positive location during termination, they are also partially inserted with the termination areas exposed which can then be fully inserted using the appropriate application equipment. These MTE receptacle assemblies come with a choice of contact platings, please refer to datasheet for details. These MTE receptacle assemblies are also available to fit two different wire sizes: Part Number X-103645-X, X-103956-X, X-103957-X, X-103958-X will accept a wire size of 0.12 to 0.3mm2 AWG 26-22 Part Number X-103959-X and X-103960-X will accept a wire size of 0.05 to 0.15mm2 AWG 30-26
