AMP FROM TE CONNECTIVITY 1-175217-2 矩形电源连接, Dynamic D-3000系列, 镀金触芯, 铜合金, 母, 压接, 24 AWG

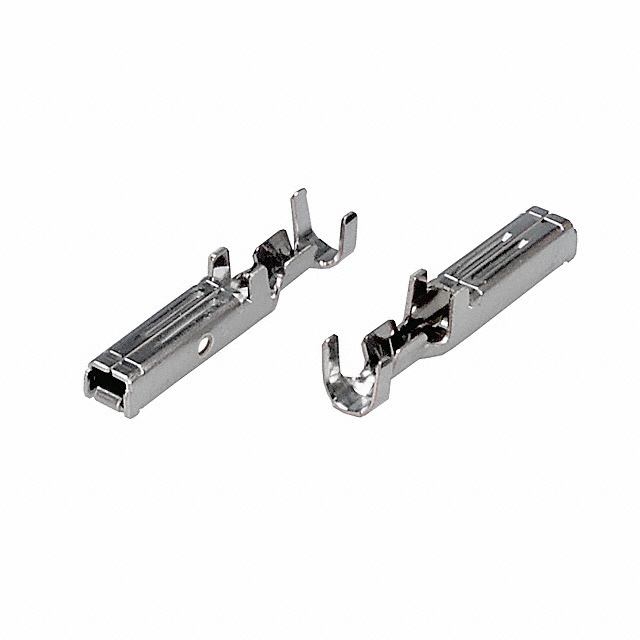

The is a socket Crimp Contact made of copper alloy with gold plated finish. It accepts 24 to 20AWG wire size. The open barrel power/signal contact is suitable for D-3 series dynamic connectors.
得捷:
CONN SOCKET 20-24AWG CRIMP GOLD
立创商城:
端子
e络盟:
AMP FROM TE CONNECTIVITY 1-175217-2. 矩形电源连接, Dynamic D-3000系列, 镀金触芯, 铜, 母, 压接, 24 AWG
艾睿:
This 1-175217-2 connector contact from TE Connectivity is designed to perform within the specified physical and mechanical loads to provide a solid connection. It has a socket type gender. It has a straight body orientation. This has a Connector Headers and PCB Receptacles connector. Its wire is 20-24 AWG. This product is 18.3 mm long, 3.6 mm tall and 3.6 mm deep. It uses the crimp termination method.
Allied Electronics:
Dynamic Contact SKT Crimp ST Cable Mount Bag
安富利:
Contact SKT Crimp ST Cable Mount Bag
Chip1Stop:
Contact SKT Crimp ST Cable Mount Bag
Verical:
Contact SKT Crimp ST Cable Mount 20-24AWG Bag Automotive
Newark:
# AMP - TE CONNECTIVITY 1-175217-2 Rectangular Power Contact, Dynamic D-3000 Series, Gold Plated Contacts, Copper Alloy, Socket, Crimp
MASTER:
M SIZE DYNAMIC SERIES REC. CONTACT L/P
Powell:
Dynamic Series Connectors
GOPHER:
Receptacle Contact 24-20AWG; CRIMP GOLD PLATING COPPER CONTACTS FEMALE DYNAMIC SERIES; UL, CSA, TUV APPROVED
Electro Sonic:
DYNAMIC D-3 REC CONT. M AU 0.38 L/P
触点数 1
极性 Female
线规 20AWG ~ 24AWG
触点电镀 Gold
易燃性等级 UL 94 V-0
额定电流Max 15 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 600 VDC
封装 端子
长度 18.3 mm
宽度 3.6 mm
高度 3.6 mm
封装 端子
触点材质 Copper Alloy
产品生命周期 Active
包装方式 Bag
制造应用 Industrial, 电机驱动与控制, 通信与网络, 机器人, 工业, 工业自动化, 电源供给
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8538908040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-175217-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-175195-2 泰科 | 类似代替 | 1-175217-2和1-175195-2的区别 |
67581-0011 莫仕 | 功能相似 | 1-175217-2和67581-0011的区别 |
