1761686-7

AMP - TE CONNECTIVITY 1761686-7 Wire-To-Board Connector, 2.54mm, 20Contacts, Header, AMP-LATCH Series, Through Hole, 2Rows

IDC LOW PRO HDR 20P VERT LG LAT

Product Highlights

Connector Type = Pin Header

Low Profile

Number of Positions = 20

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Vertical

得捷:
CONN HEADER VERT 20POS 2.54MM

艾睿:

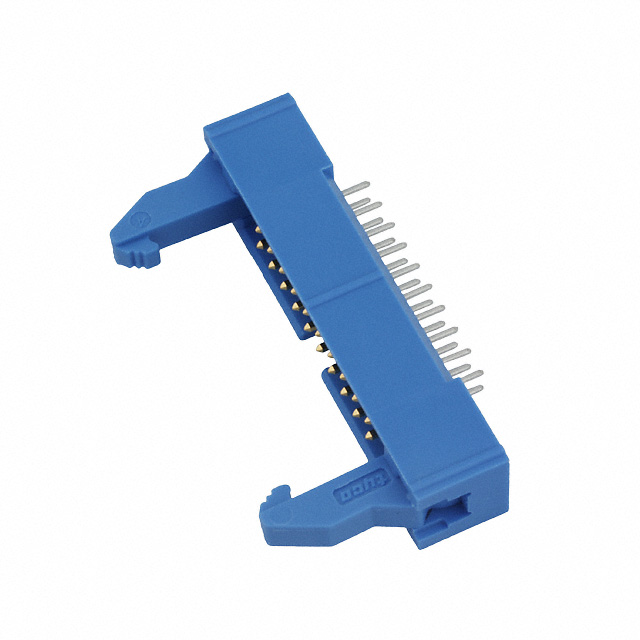

As an added safety precaution, the ejector 1761686-7 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. 1761686-7 is housed in blue polybutylene terephthalate. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. This product is 44.45 mm long, 21.31 mm tall and 9.22 mm deep.

安富利:
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  1761686-7  Wire-To-Board Connector, 2.54 mm, 20 Contacts, Header, AMP-LATCH Series, Through Hole, 2 Rows

MASTER:
HEADER ASSEMBLY, LONG EJECT LATCHES, VERTICAL, LOW PROFILE, IDC

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
HEADER ASSEMBLY, LONG EJECT LATCHES, VERTICAL, LOW PROFILE, IDC

Electro Sonic:
IDC LOW PRO HDR 20P VERT LG LAT
