1757598

间距5mm 15位 插座 12A 320V 弯插 封边

15 针位端子块 接头，公引脚，带罩（4 面） 0.197"（5.00mm） 90°，直角 - 通孔

得捷:
TERM BLOCK HDR 15POS 90DEG 5MM

艾睿:

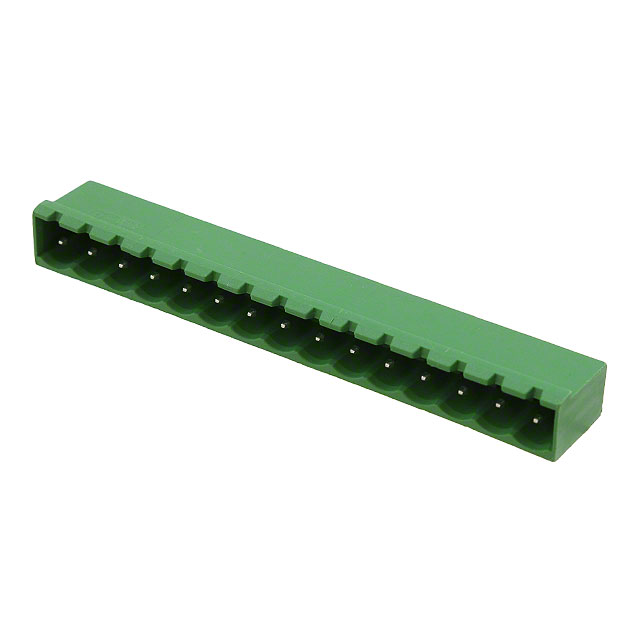

Phoenix Contact&s;s shrouded 1757598 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector has 15 contacts that are plated with tin. It has a header type gender. Its pitch is 5 mm. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. This product is 77 mm long, 8.6 mm tall and 12 mm deep. 1757598 is housed in green polybutylene terephthalate. It uses the solder termination method.

Allied Electronics:
MSTBA Series, 5mm Pitch 15 Way 1 Row Right Angle PCB Header, Solder Term, 12A

Verical:
Conn Shrouded Header 4 Sides HDR 15 POS 5mm Solder RA Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 15 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.5

Online Components:
Conn Shrouded Header HDR 15 POS 5mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
