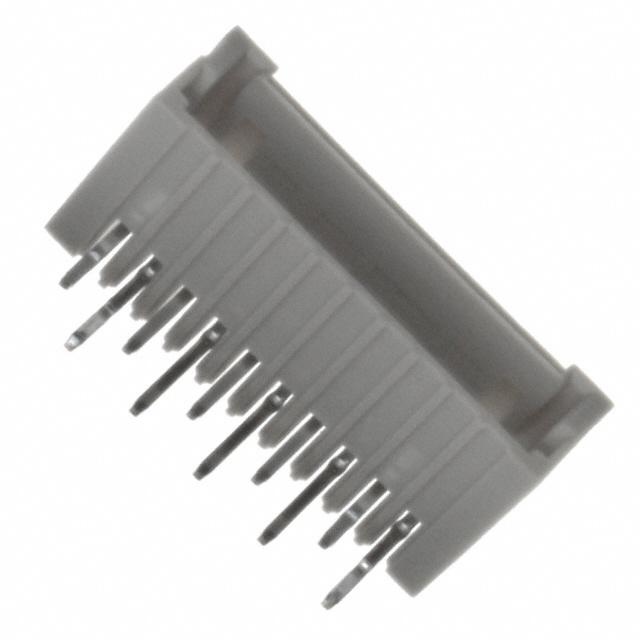

1-292206-0

Conn Shrouded Header HDR 10POS 1.5mm Solder RA Thru-Hole Tray

MINI CT SGL DIP H 10P NAT

Product Highlights

Post Header

Connector Type = DIP

Number of Positions = 10

Without Panel Attachment

Terminate To Printed Circuit Board

得捷:
CONN HEADER R/A 10POS 1.5MM

贸泽:
Headers & Wire Housings 10P DIP HDR R/A MINI NAT 1.5mm

艾睿:
Support physical configuration options for jumper posts by mounting this shrouded 1-292206-0 header connector from TE Connectivity. This HDR connector&s;s 10 contacts that are made out of brass and plated with pre-tin. It has a header type gender. It has a maximum voltage rating of 50 VDC|50VAC. This is a 1-row connector. It has a right angle body orientation. Its pitch is 1.5 mm. This device has a maximum current rating of 2 A/contact. This component will be shipped in tray format. This product is 17.5 mm long, 4.9 mm tall and 8.45 mm deep. This connector has an operating temperature of -30 to 105 °C. It uses the solder termination method. 1-292206-0 is housed in gray nylon 6/6.

安富利:
Conn Shrouded Header HDR 10 POS 1.5mm Solder RA Thru-Hole Loose Piece

Chip1Stop:
Conn Shrouded Header HDR 10 POS 1.5mm Solder RA Thru-Hole Loose Piece

Verical:
Conn Shrouded Header HDR 10 POS 1.5mm Solder RA Thru-Hole Box/Tray

Newark:
# AMP - TE CONNECTIVITY  1-292206-0  MINI CT SGL DIP H 10P NAT New

MASTER:
AMP Mini CT Connector 1.5mm Pitch

Powell:
1.5mm AMP Mini CT

Online Components:
MINI CT SGL DIP H 10P NAT

Electro Sonic:
MINI CT SGL DIP H 10P NAT
