7.62mm 排数:1 每排P数:2
Conn Wire to Board HDR 2 POS 7.62mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 2POS 90DEG 7.62MM
立创商城:
7.62mm 排数:1 每排P数:2
贸泽:
Pluggable Terminal Blocks 2 Pos 7.62mm pitch Through Hole Header
艾睿:

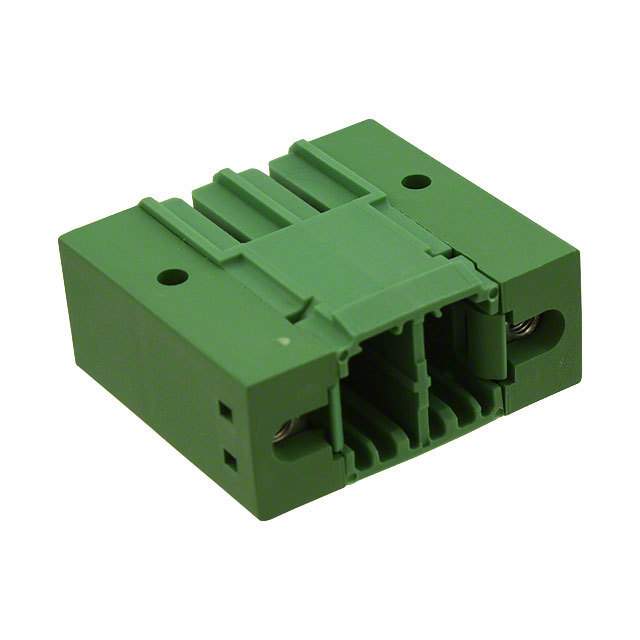

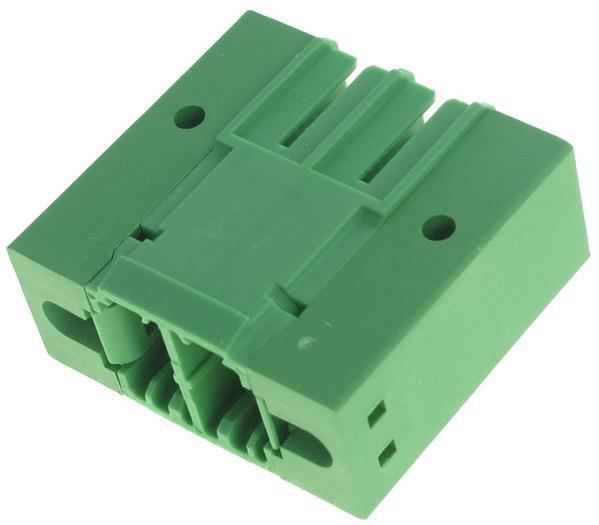

Reduce safety concerns with this wire to board 1720796 header connector from Phoenix Contact which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector has 2 contacts that are plated with tin. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 630 V. Its pitch is 7.62 mm. This is a 1-row connector. This device has a maximum current rating of 41 A. This product is 31.34 mm long, 14.29 mm tall and 29.25 mm deep. 1720796 is housed in green polyamide. It uses the solder termination method.
Allied Electronics:
COMBICON PC SER 7.62mm Pitch Straight Plug Trm Blk, PCB Header w/ Solder Term
Verical:
Conn Wire to Board HDR 2 POS 7.62mm Solder RA Thru-Hole
Online Components:
Conn Wire to Board HDR 2 POS 7.62mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 41 A - rated voltage III/2: 630 V - nominal cross section: 6 mm² - ...
