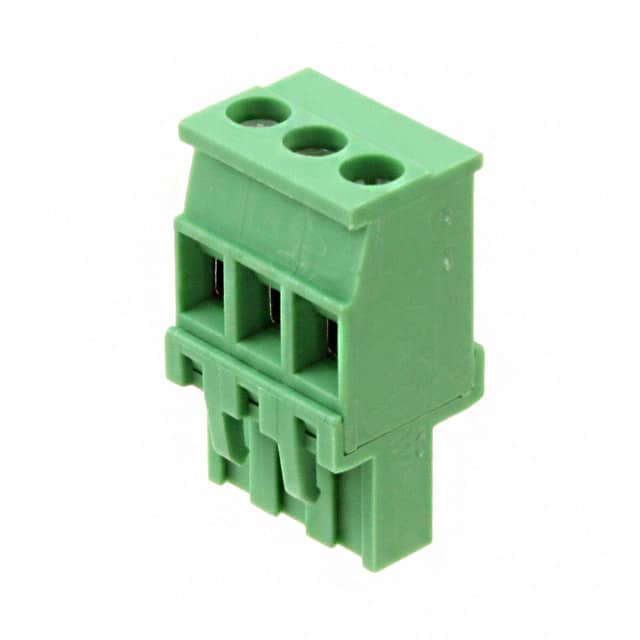

Conn Terminal Block F 3POS 5.08mm Screw ST Cable Mount 16A

3 Position Terminal Block Plug, Female Sockets 0.200" 5.08mm 90° Free Hanging In-Line


得捷:
TERM BLOCK PLUG 3POS 5.08MM


Verical:
COMBICON HC plug components, 5.08 mm pitch, color: green, no. of positions 3, dimension a 10.16 mm


Electro Sonic:
PCB connector - nominal current: 16 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...


1912414中文资料参数规格
技术参数

线规 12AWG ~ 30AWG

触点电镀 Tin

电路数 3

易燃性等级 UL 94 V-0

针脚数 3

额定电流Max 16 A

额定电压Max 320 V

封装参数

安装方式 Screw

物理参数

外壳颜色 Green

颜色 Green

外壳材质 Plastic

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1912414
型号: 1912414
描述:Conn Terminal Block F 3POS 5.08mm Screw ST Cable Mount 16A
替代型号1912414
型号/品牌 代替类型 替代型号对比

1912414

Phoenix 菲尼克斯

当前型号

当前型号

20020008-H031B01LF

法马通

功能相似

1912414和20020008-H031B01LF的区别
