1766589

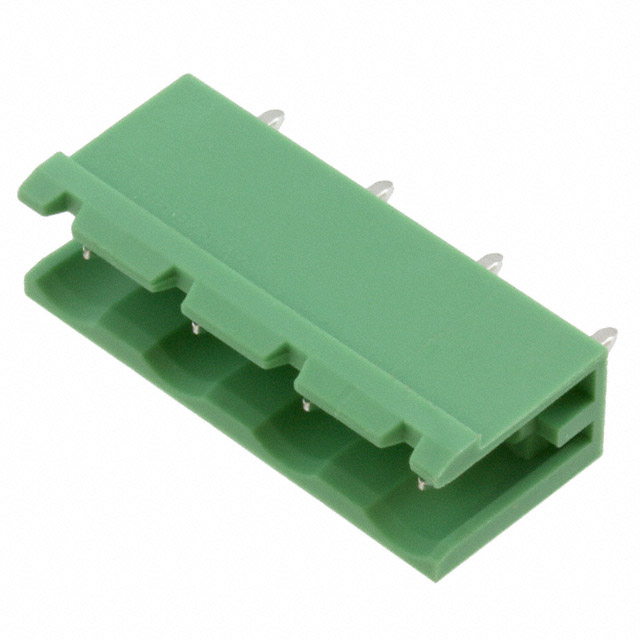

Phoenix Contact PCB 接线端子块 COMBICON GMSTBV 系列 4路 7.62mm节距 1766589, 焊接端接, 12A

4 针位端子块 接头，公引脚，带罩（2 面） 0.300"（7.62mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 4POS VERT 7.62MM

欧时:
Phoenix Contact PCB 接线端子块 COMBICON GMSTBV 系列 4路 7.62mm节距 1766589, 焊接端接, 12A

贸泽:
Pluggable Terminal Blocks 4 Pos 7.62mm pitch Through Hole Header

艾睿:
Protect your printed circuit boards from accidental damages with Phoenix Contact&s;s shrouded 1766589 header connector. This HDR connector has 4 contacts that are plated with tin. It has a header type gender. It has a straight body orientation. Its pitch is 7.62 mm. This is a 1-row connector. It has a maximum voltage rating of 630 V. This device has a maximum current rating of 12 A. It uses the solder termination method. 1766589 is housed in green polyamide. This product is 28.68 mm long, 12 mm tall and 8.6 mm deep.

Verical:
Conn Shrouded Header 2 Sides HDR 4 POS 7.62mm Solder ST Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 4 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3

Online Components:
Conn Shrouded Header HDR 4 POS 7.62mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
