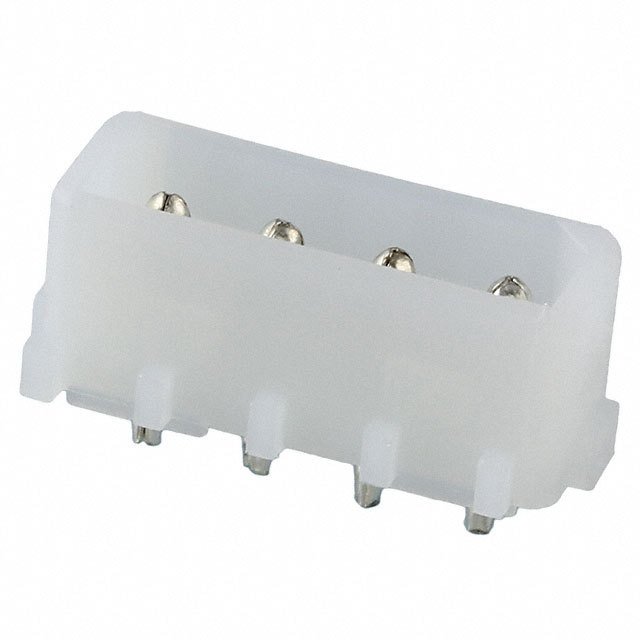

AMP FROM TE CONNECTIVITY 1586627-1 针座
04P CMNL HDR VRT W/DH LF
Product Highlights
Connector
Preloaded
Connector Style = Header - Pin
Contact Type = Pin
Through Hole Contact Termination Type
得捷:
CONN HEADER VERT 4POS 5.08MM
贸泽:
管脚和插座连接器 4P HEADER VERTICAL W/DRAIN HOLES
e络盟:
针座
艾睿:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 1 Terminal 1 Port Box/Tube
安富利:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 1 Terminal 1 Port
Chip1Stop:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 1 Terminal 1 Port Bag
Verical:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 1 Terminal 1 Port Box/Tube
Newark:
# AMP - TE CONNECTIVITY 1586627-1 Rectangular Connector, Commercial MATE-N-LOK Series, 4 Contacts, Header, 5.08 mm, Through Hole
MASTER:
HEADER ASSY, 4 CKT, COMMERCIAL MATE-N-LOKTM
Powell:
.200" Centerline, 250 V, 13 A max.
Online Components:
04P CMNL HDR VRT W/DH LF
Electro Sonic:
04P CMNL HDR VRT W/DH LF
触点数 4
极性 Male
触点电镀 Tin
额定电流 12 A
排数 1
方向 Vertical
电路数 4
易燃性等级 UL 94 V-2
针脚数 4
拔插次数 10
安装角度 180 °
额定电流Max 13A/触头
额定电压Max 250 VAC
额定电压 250 VAC
安装方式 Through Hole
引脚间距 5.08 mm
长度 23.2 mm
宽度 8.38 mm
高度 10.29 mm
引脚间距 5.08 mm
外壳颜色 Natural
颜色 Natural
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bag
制造应用 Power, -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
