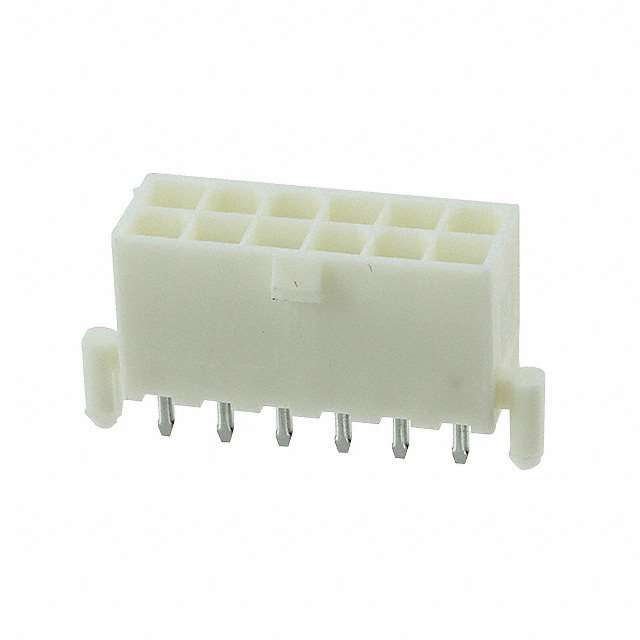

1-1586040-2

集管和线壳 12P VRT HDR W/P V0

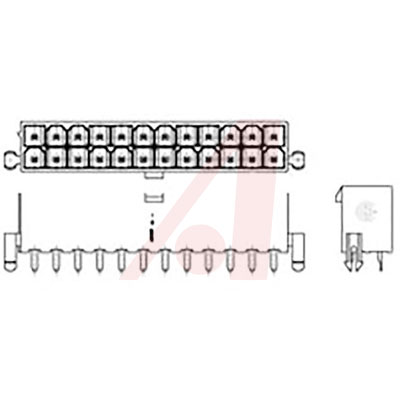

** VAL-U-LOK Double Row Pin Headers**

VAL-U-LOK right angle and vertical double row PCB mount pin headers with a 4.2mm centerline and tin plated brass male pin contacts. These VAL-U-LOK pin headers have an easy mate and unmate design with positve latching and have keying to ensure accurate alignment when mating. In addition these VAL-U-LOK pin header connectors are available with pegs or boardlocks for alignment on the PCB. The housings of these VAL-U-LOK pin headers are made from UL94V-0 or UL94V-2 rated natural nylon. Part numbers X-2029171-X have UL94V-0 housings Part numbers X-1586037-X, X-1586041-X and X-2029170-X have UL94V-2 housings Part numbers X-1586039-X and X-2029172-X have UL94V-2 housings and mounting pegs Part numbers X-1586043-X have UL94V-2 housings and screw mounting Part numbers X-1586038-X and X-1586042-X have UL94V-0 housings Part numbers X-1586040-X and X-2029173-X have UL94V-0 housings and mounting pegs Part numbers X-1586044-X have UL94V-0 housings and screw mounting
