1-207158-0

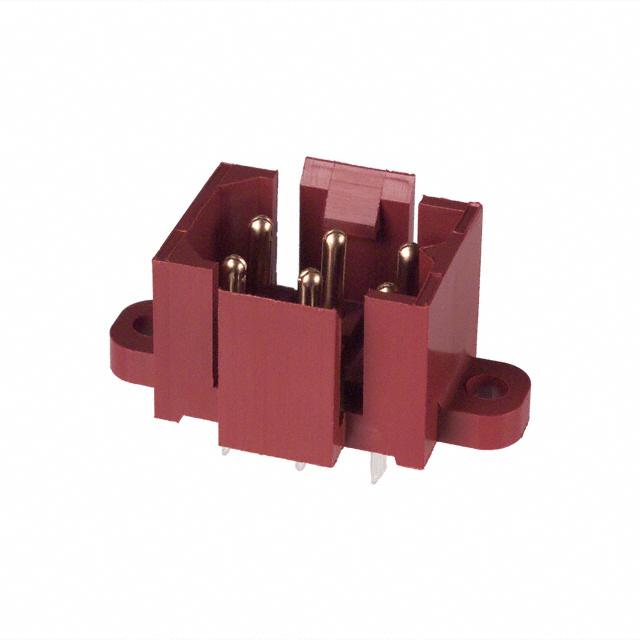

AMP FROM TE CONNECTIVITY  1-207158-0  插接连接器, 针座 6路 5MM

Metrimate 5mm 方形栅格引脚和插座印刷电路板管座

Metrimate 方形栅格引脚和插座印刷电路板安装管座，具有红色热塑性 94V-0 等级外壳和 5mm 中心线。 这些方形栅格引脚和插座印刷电路板安装管座预装了铜合金、镀锡或镀金双工引脚触点或磷青铜、镀锡或镀金双工插座触点，并具有锁定插片和安装耳。

得捷:
CONN HEADER VERT 6POS 5MM

欧时:
Header pcb 6 way pin Metrimate

e络盟:
矩形连接器, Metrimate Series, 6 触点, 插头, 5 mm, 通孔安装, 6排

艾睿:
Do you need to connect a power supply to a circuit? Then this 1-207158-0 power connector from TE Connectivity is perfect for you! This PIN connector&s;s 6 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. This connector has a single port. Its pitch is 5 mm. It has a maximum voltage rating of 600 VDC|600VAC. This device has a maximum current rating of 14 A/contact. 1-207158-0 is housed in nylon. This product is 18.16 mm long, 11.79 mm tall and 27.69 mm deep. This power connector has a minimum operating temperature of -55 °C and a maximum of 130 °C. Its 6 terminals use the solder termination method.

Allied Electronics:
5mm 6 Way 3 Row Straight Through Hole Male Multiway Connector

安富利:
Conn Power PIN 6 POS 5mm Solder ST Thru-Hole 6 Terminal 1 Port

Chip1Stop:
Conn Power PIN 6 POS 5mm Solder ST Thru-Hole 6 Terminal 1 Port

Verical:
Conn Power PIN 6 POS 5mm Solder ST Thru-Hole 6 Terminal 1 Port

Newark:
# AMP - TE CONNECTIVITY  1-207158-0  Rectangular Connector, Metrimate Series, 6 Contacts, Header, 5 mm, Through Hole, 2 Row

MASTER:
PIN HEADER ASSEMBLY, 6 POSITION, METRIMATE

Powell:
Metrimate Connectors

Online Components:
METRIMATE PIN HDR ASY,6P LF

Electro Sonic:
METRIMATE PIN HDR ASY,6P LF
