1-1103634-1

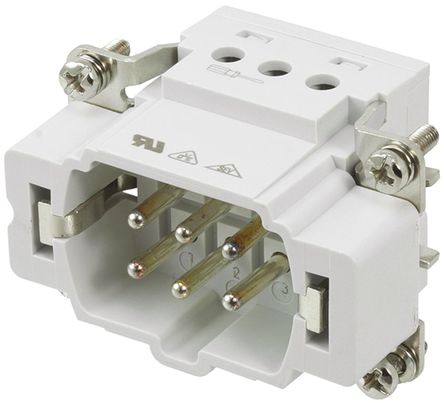

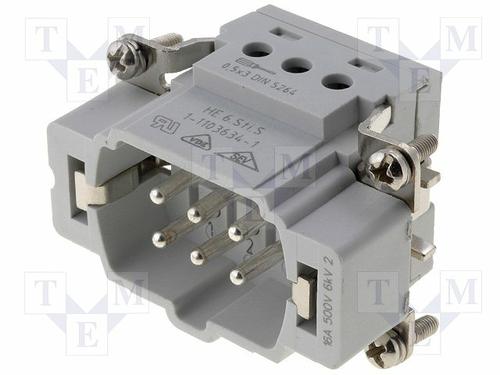

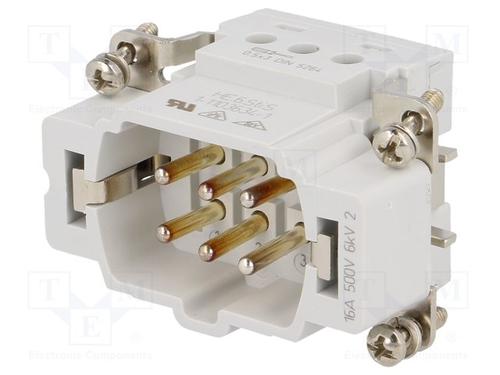

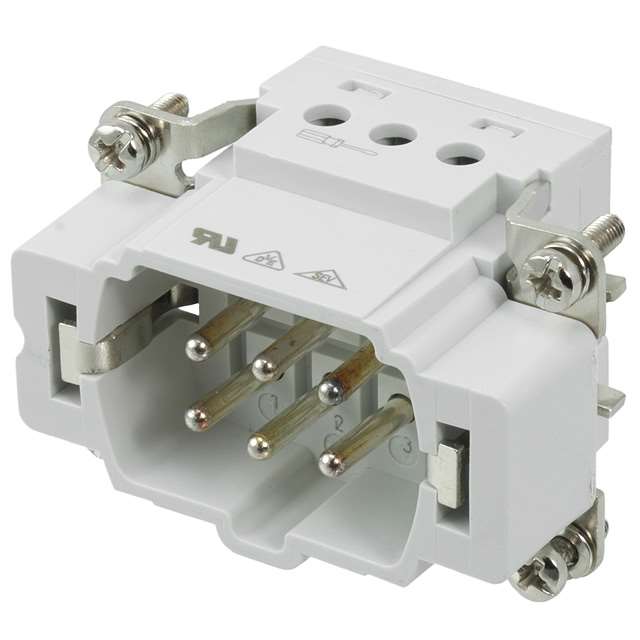

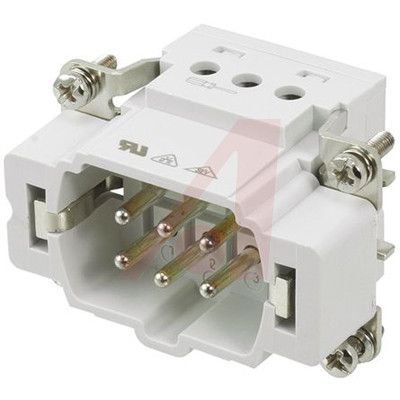

TE CONNECTIVITY / HTS  1-1103634-1  重载连接器插件, 6+PE信号, HTS系列, 插头, 3, 7 触点, 16 A

HE 插件

公和母插件将适合电缆护罩外壳或底座外壳。插件不带触点。每个插件有单独的接地触点。如果需要 32 路连接器，应购买 1 - 16 极（16 路）和 17 - 32 极插件。这些插件将安装在尺寸 10 HE 外壳旁。

### 认可

UL 认可，CSA 认证，SEV

欧时:
1-1103634-1 - TE Connectivity 大负荷电源连接器套件 HE 系列 6触点 6P+E极 插头 尺寸 3

得捷:
INSERT MALE 6POS+1GND SCREW

e络盟:
重载型连接器, 6+PE信号, HTS系列, 插入件, 7触芯, 3, 插头, 螺丝销

艾睿:
TE Connectivity&s;s heavy-duty rectangular 1-1103634-1 USB connector can make a durable, rugged connection between different electronic components. It has a plug type gender. This is a 2-row connector. It has a maximum voltage rating of 400 V. This PL connector&s;s 6signal / 1ground contacts that are made out of iron/copper nickel and plated with silver/gold. It has a straight body orientation. This device has a maximum current rating of 16 A/contact. 1-1103634-1 is housed in polycarbonate. This product is 52 mm long, 33 mm tall and 34 mm deep. It uses the screw termination method.

Allied Electronics:
HE Series Connector Insert; Male; 6 Way; 16A; 400 V

Chip1Stop:
Conn Heavy-Duty Rectangular PIN 6Signal/1Ground POS Screw ST Panel Mount Loose

TME:
Connector: HTS; male; HTS HE; PIN:6; 6+PE; size 3; 16A; 400V; A:21mm

Verical:
Conn Heavy-Duty Rectangular PIN 6Signal/1Ground POS Screw ST Panel Mount Carton

Newark:
# HTS - TE CONNECTIVITY  1-1103634-1  Heavy Duty Connector Insert, 6+PE Signal, HTS Series, 7, 2, Plug, 3, Pin

Powell:
HTS Connectors and Accessories

Electro Sonic:
HE.6.STI.S
