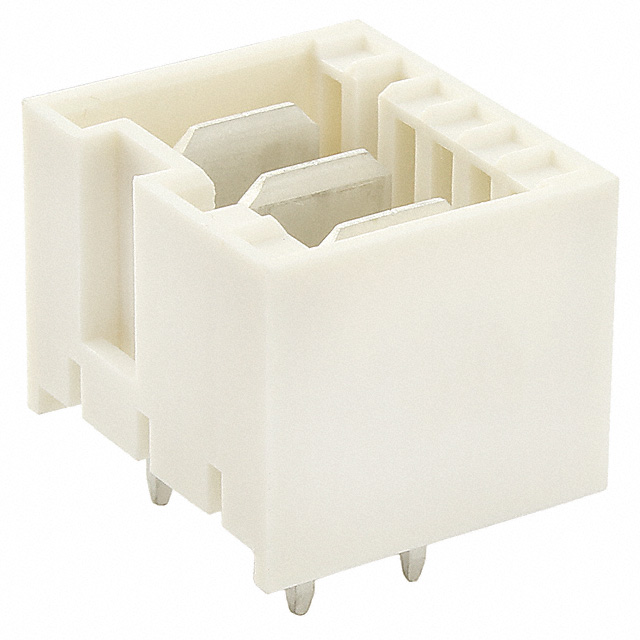

1971845-3

AMP FROM TE CONNECTIVITY  1971845-3  连接器, 针座, 3路, 1排, 5MM

针座 通孔 3 位置 0.197"（5.00mm）

得捷:
CONN HEADER VERT 3POS 5MM

e络盟:
连接器, 针座, 3路, 1排, 5MM

艾睿:
Connecting an electronic device to a power supply has never been easier with this 1971845-3 power connector from TE Connectivity. This HDR connector&s;s 3 contacts that are made out of copper alloy and plated with tin over nickel. It has a header type gender. Its pitch is 5 mm. It has a maximum voltage rating of 250 VAC. This connector has a single port. It has a straight body orientation. 1971845-3 is housed in nylon 6/6. This device has a maximum current rating of 10 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 6 terminals use the solder termination method. This product is 17.3 mm long, 12.8 mm tall and 14.9 mm deep.

安富利:
Conn Power HDR 3Power POS 5mm Solder ST Thru-Hole 6 Terminal 1 Port Tube/Box

Verical:
Conn Power HDR 3 POS 5mm Solder ST Thru-Hole 6 Terminal 1 Port Box/Tube

Newark:
# AMP - TE CONNECTIVITY  1971845-3  Wire-To-Board Connector, 5 mm, 3 Contacts, Header, RAST 5.0 Series, Through Hole, 1 Rows

MASTER:
RAST 5 TAB HEADER ASSY DIN STYLE, TH, VERTICAL

Online Components:
3P, RAST 5 Tab Header, THV

Electro Sonic:
3P, RAST 5 Tab Header, THV
