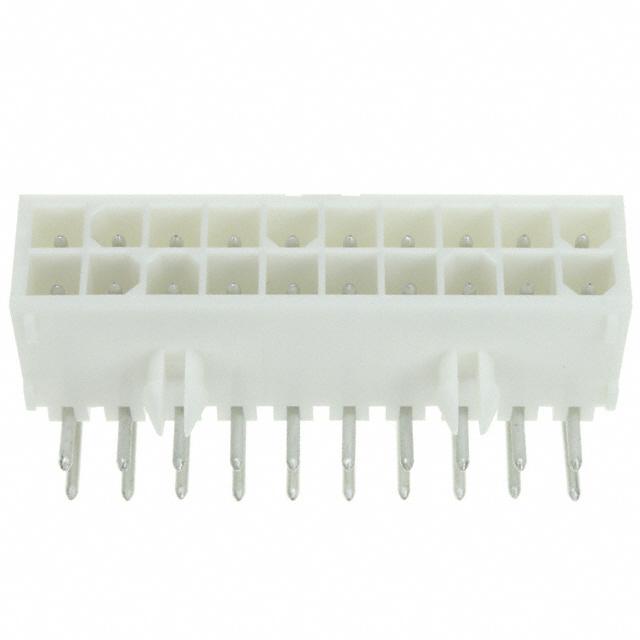

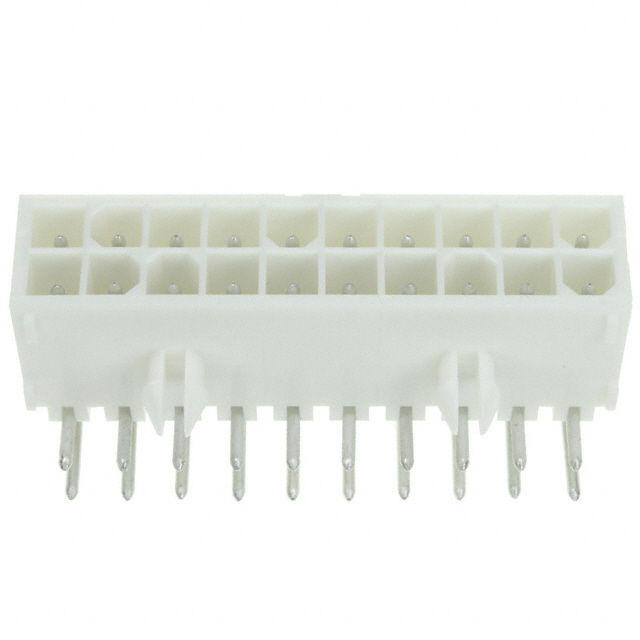

1-794106-0

微型通用 MATE-N-LOK 20 位置 通孔 双排 直角 针座

针座 通孔，直角 20 位置 0.163"（4.14mm）

得捷:
CONN HEADER R/A 20POS 4.14MM

艾睿:
This specially engineered 1-794106-0 power connector from TE Connectivity is designed for various high voltage and current supplies. This HDR connector&s;s 20 contacts that are made out of brass and plated with tin over nickel. This connector has a single port. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. It has a header type gender. Its pitch is 4.14 mm. 1-794106-0 is housed in nylon. This device has a maximum current rating of 9.5 A/contact. This product is 10.56 mm tall. Its 20 terminals use the solder termination method.

安富利:
Conn Power HDR 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port

Chip1Stop:
Conn Power HDR 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port

Verical:
Conn Power HDR 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port Bag

Newark:
# AMP - TE CONNECTIVITY  1-794106-0  Wire-To-Board Connector, 4.14 mm, 20 Contacts, Header, Mini Universal MATE-N-LOK Series

MASTER:
HDR ASSY,RIGHT ANGLE W/SHORT PEG,20 CIRCUIT MINI UNIVERSAL MATE-N-LOKTM

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
20P MINI UMNL R/A HDR ASSY

Electro Sonic:
20P MINI UMNL R/A HDR ASSY
