1-794068-0

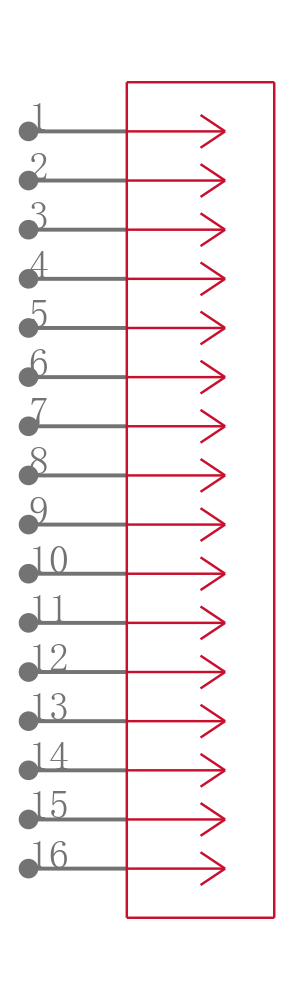

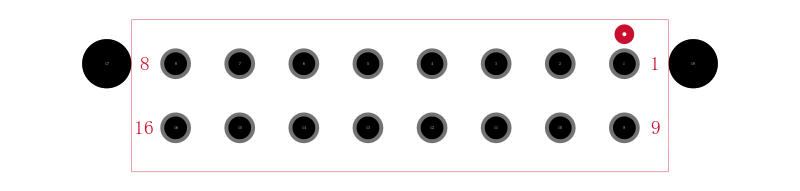

AMP FROM TE CONNECTIVITY  1-794068-0  连接器, 公, 16路, 4.14MM

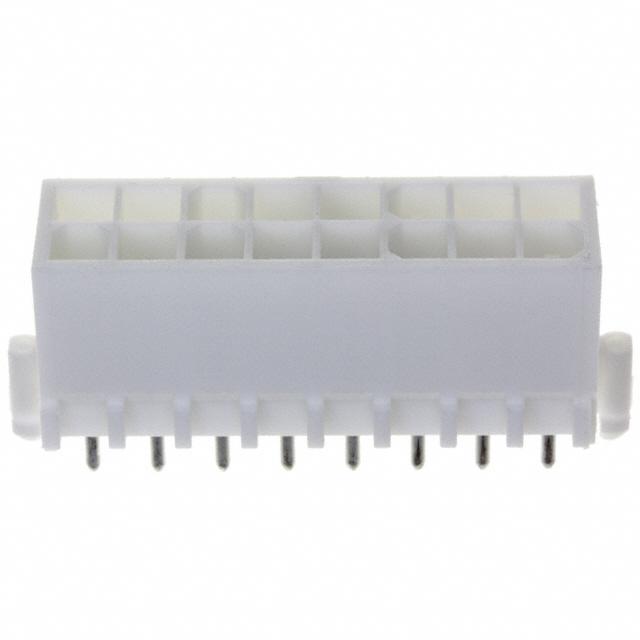

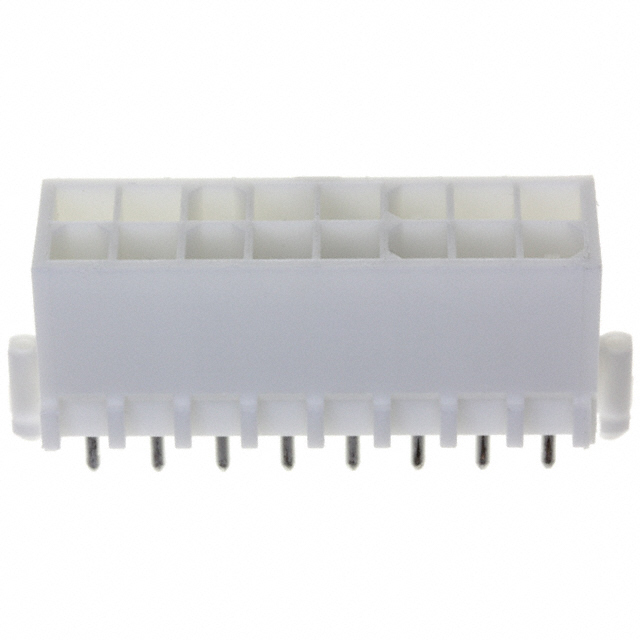

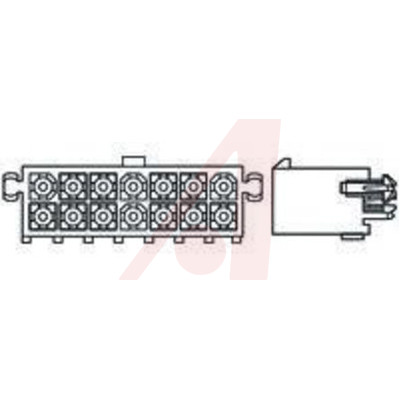

微型通用 MATE-N-LOK 垂直安装印刷电路板引脚针座

微型通用 MATE-N-LOK 垂直安装印刷电路板引脚针座，具有 4.14mm 中心线，用于预装了镀锡或镀金引脚触点的线到板应用。 这些微型通用 MATE-N-LOK 垂直安装印刷电路板引脚针座具有白色 UL94V-0 尼龙外壳，包含正向锁定闩锁机制，可确保牢固配接和锁定板，利于固定印刷电路板，带或不带排放孔。 有关配接连接器，请参见微型通用 MATE-N-LOK 插头外壳和微型通用 MATE-N-LOK 2 插头外壳（均使用插座触点）

部件号 X-770166-X、X-770170-X、X-770174-X、X-770178-X、X-770182-X、X-770186-X、X-770190-X、X-770743-X、X-794065-X、X-794066-X、X-794067-X、X-794068-X、X-794070-X 和 X-794072-X 全部具有排放孔。

**Additional Data**

---

**RS Stock Number** | **Manufacturer Part Number** | **Housing Style** | **Drain Holes** | **Contact Plating** | **Width**

500-604 | 1-770166-0 | In-Line | Yes | Tin | 9.83 mm

500-585 | 1-770166-1 | In-Line | Yes | Duplex | 9.83 mm

500-597 | 1-770170-0 | In-Line | Yes | Tin | 13.97 mm

500-581 | 1-770170-1 | In-Line | Yes | Duplex | 13.97 mm

500-614 | 1-770174-0 | Dual Row | Yes | Tin | 9.83 mm

500-591 | 1-770174-1 | Dual Row | Yes | Duplex | 9.83 mm

500-632 | 1-770178-0 | Dual Row | Yes | Tin | 13.97 mm

500-496 | 1-770182-0 | Matrix | Yes | Tin | 14 mm

500-468 | 1-770182-1 | Matrix | Yes | Duplex | 14 mm

500-430 | 1-770186-0 | Matrix | Yes | Tin | 18.11 mm

500-440 | 1-770186-1 | Matrix | Yes | Duplex | 18.11 mm

500-626 | 1-770190-0 | Matrix | Yes | Tin | 22.28 mm

500-610 | 1-770190-1 | Matrix | Yes | Duplex | 22.28 mm

720-2297 | 1-770621-0 | Dual Row | No | Tin | 26.39 mm

680-1363 | 1-770743-0 | Dual Row | Yes | Tin | 22.28 mm

709-9915 | 1-770743-1 | Dual Row | Yes | Duplex | 22.28 mm

709-9921 | 1-770872-0 | In-Line | No | Tin | 9.83 mm

709-9931 | 1-770873-0 | In-Line | No | Tin | 13.97 mm

756-1234 | 1-770873-1 | In-Line | No | Duplex | 13.97 mm

680-1367 | 1-770874-0 | Dual Row | No | Tin | 9.83 mm

756-1243 | 1-770874-1 | Dual Row | No | Duplex | 9.83 mm

709-9956 | 1-770875-0 | Dual Row | No | Tin | 13.97 mm

720-2294 | 1-770875-1 | Dual Row | No | Duplex | 13.97 mm

500-676 | 1-794065-0 | Dual Row | Yes | Tin | 18.11 mm

500-490 | 1-794065-1 | Dual Row | Yes | Duplex | 18.11 mm

680-1411 | 1-794066-0 | Dual Row | Yes | Tin | 26.39 mm

680-1414 | 1-794067-0 | Dual Row | Yes | Tin | 30.53 mm

680-1418 | | Dual Row | Yes | Tin | 34.67 mm

500-620 | 1-794070-0 | Dual Row | Yes | Tin | 42.95 mm

500-636 | 1-794070-1 | Dual Row | Yes | Duplex | 42.95 mm

680-1427 | 1-794072-0 | Dual Row | Yes | Tin | 51.23 mm

720-2307 | 1-794073-0 | Dual Row | No | Tin | 18.11 mm

720-2304 | 1-794073-1 | Dual Row | No | Duplex | 18.11 mm

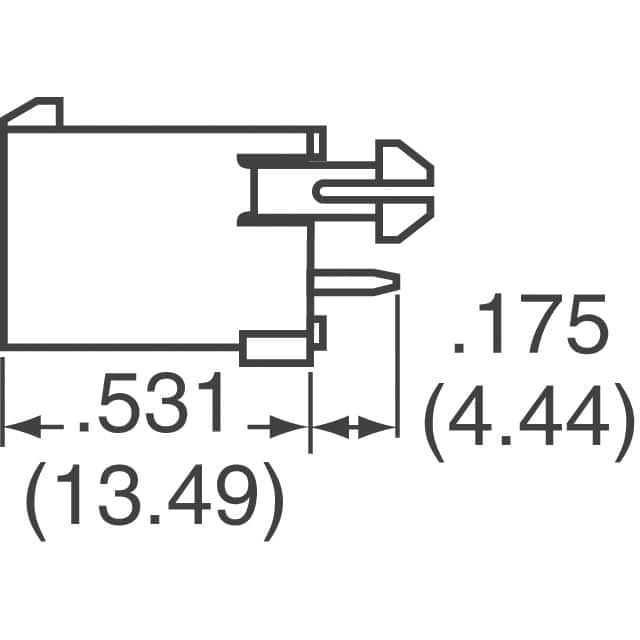

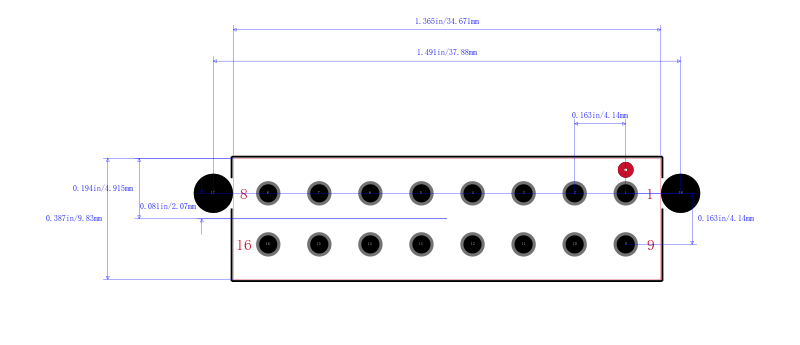

尺寸

---

电路数量 | 尺寸 mm |

  | A | B

2 | 9.8 | 5.6

3 | 14 | 5.6

4 | 9.8 | 9.8

6 | 14 | 9.8

8 | 18 | 9.8

9 | 14 | 14

12 | 18.1 | 14

15 | 22.3 | 14

20 | 43 | 9.8
