1-1337475-0

TE CONNECTIVITY / GREENPAR  1-1337475-0  射频/同轴连接器, SMB同轴, 直型插头, 焊接, 50 ohm, RG174A, RG188A, RG316, URM95, 铍铜

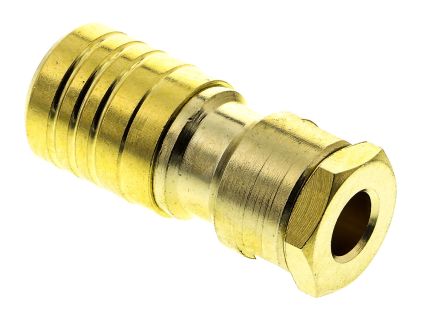

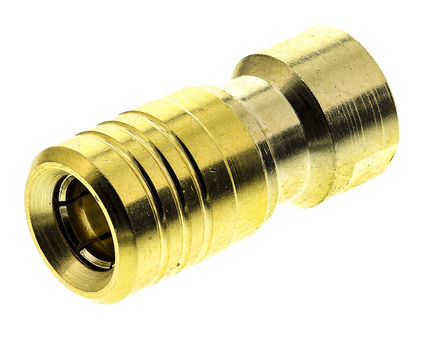

50Ω SMB 直向插头

50Ω SMB 直向插头，带六角压接同轴端接、扣入式耦合器、PTFE 电介质和镀金黄铜主体。 这种射频同轴 SMB 插头可与 RG-174/U、RG-188 A/U、RG-316/U、URM 95、KX3B 和 KX22A 电缆一起使用。

### TE Connectivity - SMB 镀金

夹子和压接终端选件中的 SMB 50Ω 。

可靠、快速连接/断开系统

推荐压接工具库存号 456-778

欧时:
SMB RF coax plug,crimp,RG174,RG188,RG316

得捷:
CONN SMB PLUG STR 50 OHM SOLDER

贸泽:
RF连接器/同轴连接器 SMB STR PLG PS 50OHM GOLD PLTD RG174A/U

e络盟:
射频/同轴连接器, SMB同轴, 直型插头, 焊接, 50 ohm, RG174A, RG188A, RG316, URM95, 铍铜

艾睿:
Do you have coaxial cables? This smb 1-1337475-0 RF connector manufactured from TE Connectivity is a must for you, it offers low transmission line impedance. This connector&s;s body is plated in gold. It has a straight body orientation. It has a plug type gender. It has an operating frequency of 0 to 4G Hz. This product is 14.2 mm long with a diameter of 6.5 mm. It uses the crimp termination method. This rf connector has an operating temperature of -65 to 165 °C.

Allied Electronics:
Cable Mount SMB Connector Plug; 50Ohms Impedance; Crimp Termination

安富利:
Conn SMB PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Individual

Chip1Stop:
Conn SMB 0Hz to 4GHz 50Ohm Crimp ST Cable Mount PL Gold Tray

Verical:
Conn SMB PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Individual

MASTER:
SMB STRAIGHT PLUG SOLDER 50 OHM RG174/U, 188A/U, 316/U, URM95, KX3B, KX22A

Powell:
SMB RF Connectors

Online Components:
SMB STRAIGHT PLUG SOLDER 50 OHM RG174/U, 188A/U, 316/U, URM95, KX3B, KX22A

Electro Sonic:
SMB Str Plg PS 50Ohm Gold Pltd RG174A/U,
