110-93-308-41-001000

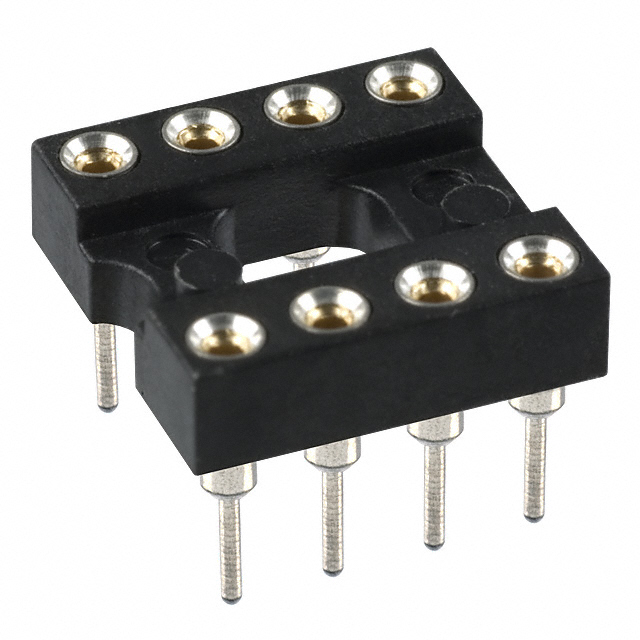

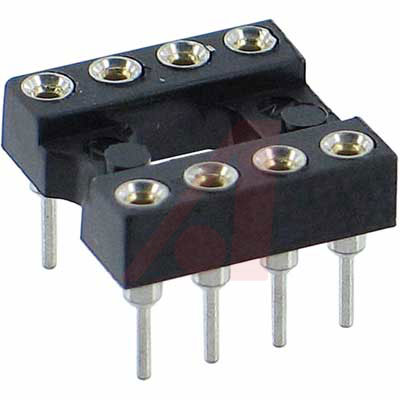

MILL MAX  110-93-308-41-001000  芯片插座, DIP, 8脚, 通孔安装

Dual In Line Socket, Standard Solder Tail Open Frame

* All DIP sockets accept 0.015 to 0.025" Dia. and standard IC No Suggestions, 4-finger BeCu #30 clip rated at 3 A

* Uses #1001 pin

得捷:
CONN IC DIP SOCKET 8POS GOLD

贸泽:
IC & Component Sockets 8P TIN PIN GOLD CONT

e络盟:
芯片和元件插座, 8 触点, DIP插座, 2.54 mm, 110 Series, 7.62 mm, 铍铜

艾睿:
This dip socket 110-93-308-41-001000 connector socket from Mill-Max Mfg. Corp. will connect multiple wires to a single connector. This SKT connector&s;s 8 contacts that are made out of beryllium copper alloy and plated with gold over nickel. This is a 2-row connector. It has a socket type gender. It has a maximum voltage rating of 150 VDC|100VAC. Its pitch is 2.54 mm. It has a straight body orientation. 110-93-308-41-001000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. This connector socket has an operating temperature of -55 to 125 °C. This product is 10.16 mm long, 4.19 mm tall and 10.16 mm deep. It uses the solder termination method. It is insulated with polychlorinated terphenyl.

Allied Electronics:
Conn; IC Socket; DIP; 8; Open; 110 Series; Thru-Hole; 0.3"; 0.1" Pin Spcng; Straight; 3A

Chip1Stop:
Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
IC & Component Socket, 110 Series, DIP Socket, 8 Contacts, 2.54 mm, 7.62 mm, Gold Plated Contacts
